Specifications

SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

Frame

All new Series 4 Aluminum, 29" Wheels, 120mm IsoTrac Suspension Platform, Full Internal Cable Routing, Chainstay Mounted 160MM DM, 148x12mm Boost Thru-Axle, 73mm BB Shell, ISCG 05 Tabs

Front Suspension

Fox 34SL Performance, 130mm Travel, Grip 3-Pos Damper, Kabolt SL Axle 110x15mm, Tapered Steerer Tube, 44mm Offset

Rear Suspension

Fox Float SL Performance, 3-Pos Compression Adjust, EVOL LV Air Spring, 190x45mm, 30x8m Hardware, 0.6 VC, CL+ RF CMF Tune

Rim

Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 28H, Tubeless Compatible

Hub Rear

Novatech, 148x12, 6-Bolt, HG Driver, 28H

Hub Front

Novatech, 110x15mm, 6-Bolt Disc, 28h

Spokes

14g Black Stainless Steel

Tires

Maxxis Rekon Race, 29x2.35", Folding Bead, Tubeless Ready

Derailleur Rear

Shimano Deore, 12-Speed, SGS

Shift Lever

Shimano Deore, 12-Speed

Crankset

Race Face Affect, 32T Steel Ring, 24mm Spindle, 170mm, 55.5mm CL

Bottom Bracket

Race Face BSA Threaded 68/73

Chain

KMC X-12 Silver and Black

Cassette

Shimano, Deore 12-Speed, 10-51T

Brakes Front

Shimano Deore M6120, Hydraulic Disc, 180mm CL Rotor

Brakes Rear

Shimano Deore M6120, Hydraulic Disc, 180mm CL Rotor

Brake Levers

Shimano Deore M6120, Hydraulic Disc

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 30mm Rise, 5º Up, 9º Back

Stem

Marin 3D Forged Alloy, 55mm

Grips

Marin Grizzly Lock-On

Headset

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost

Tranz-X YSI60QL Dropper Post, Adjustable Travel, 30.9mm Diameter, S = 150MM / M = 170MM / L-XL = 200MM

Saddle

Marin Speed Concept

Geometry

Geometry S M L XL
A Stack 593.8 603 612 621
B Reach 425 455 480 510
C Headtube angle 65° 65° 65° 65°
D Headtube length 90 100 110 120
E Seattube length 400 410 450 500
F Seattube angle 76° 76° 76° 76°
G Toptube effective 562.7 595.7 623.7 656.7
H Bb height 333 333 333 333
I Bb drop 38 38 38 38
J Chainstay 435 435 435 435
K Wheelbase 1166 1200 1229.6 1263.7
L Standover height 594 595 719 744
M Fork offset 44 44 44 44
N Seatpost diameter 30.9 30.9 30.9 30.9
O Handlebar width 780 780 780 780
P Stem length 55 55 55 55
Q Crank length 170 170 170 170

Find Your Fit

Your Height 5'3" / 160cm

slide the scale to your height measurement

You ride a

S / BLACK/GREY

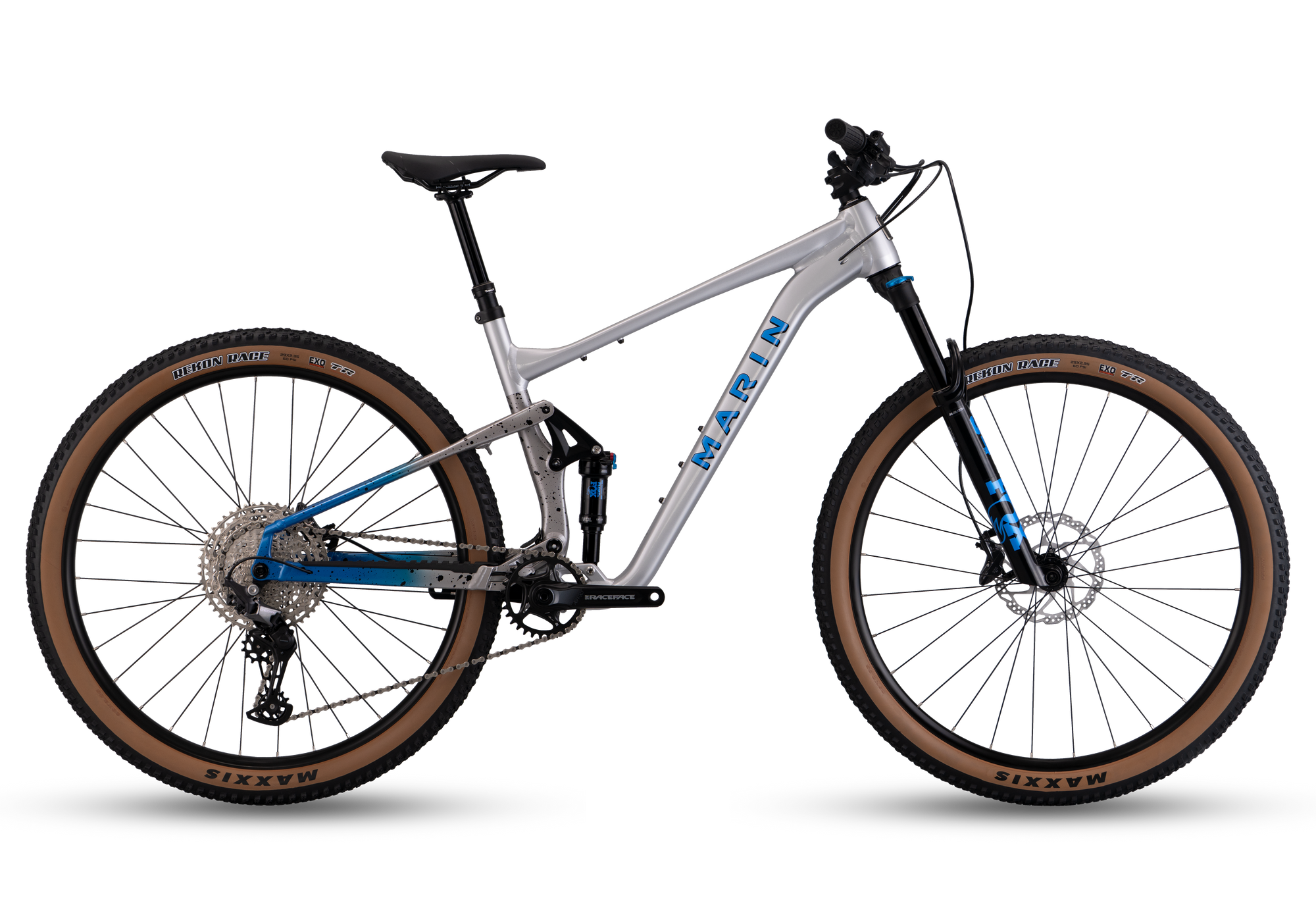

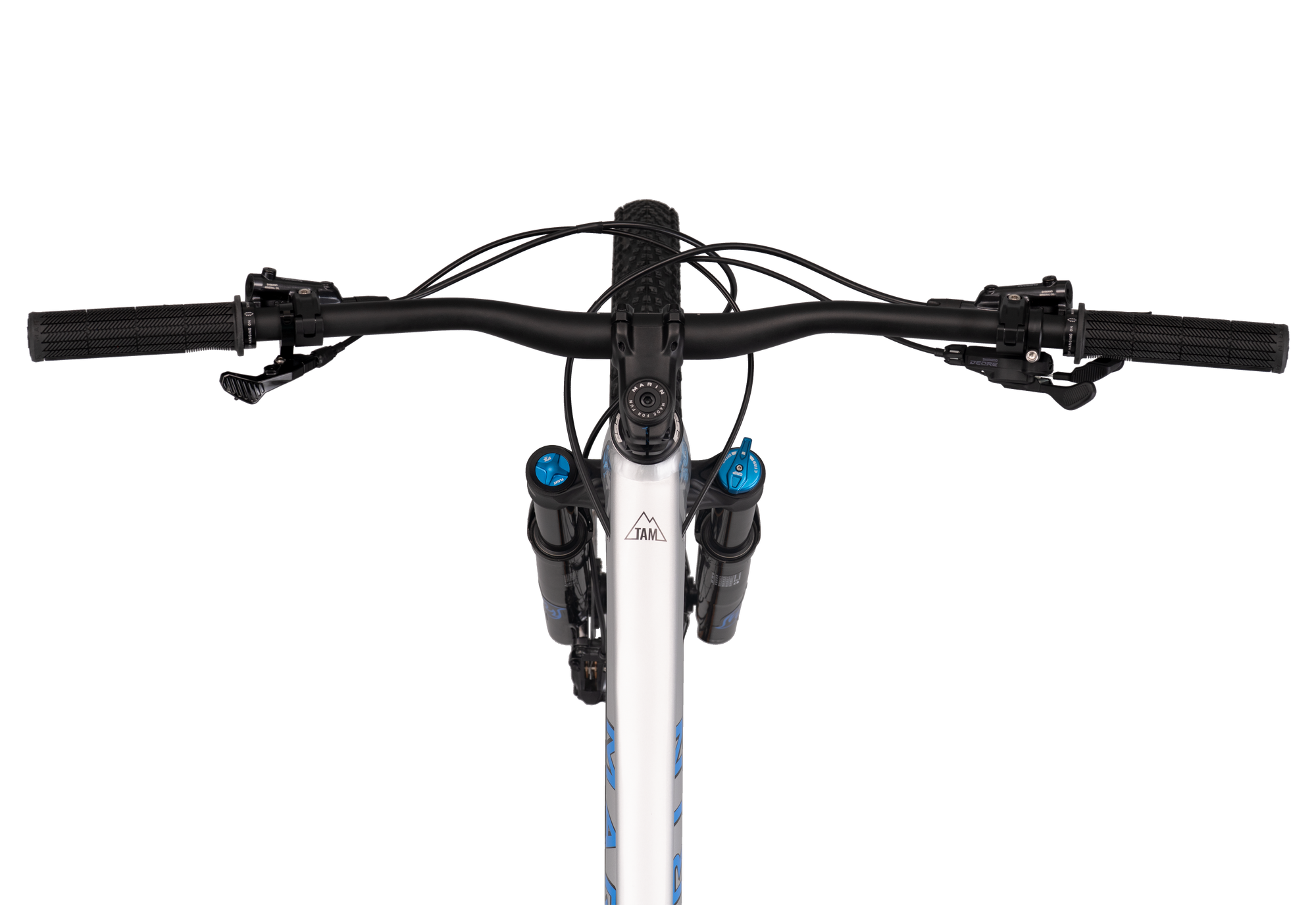

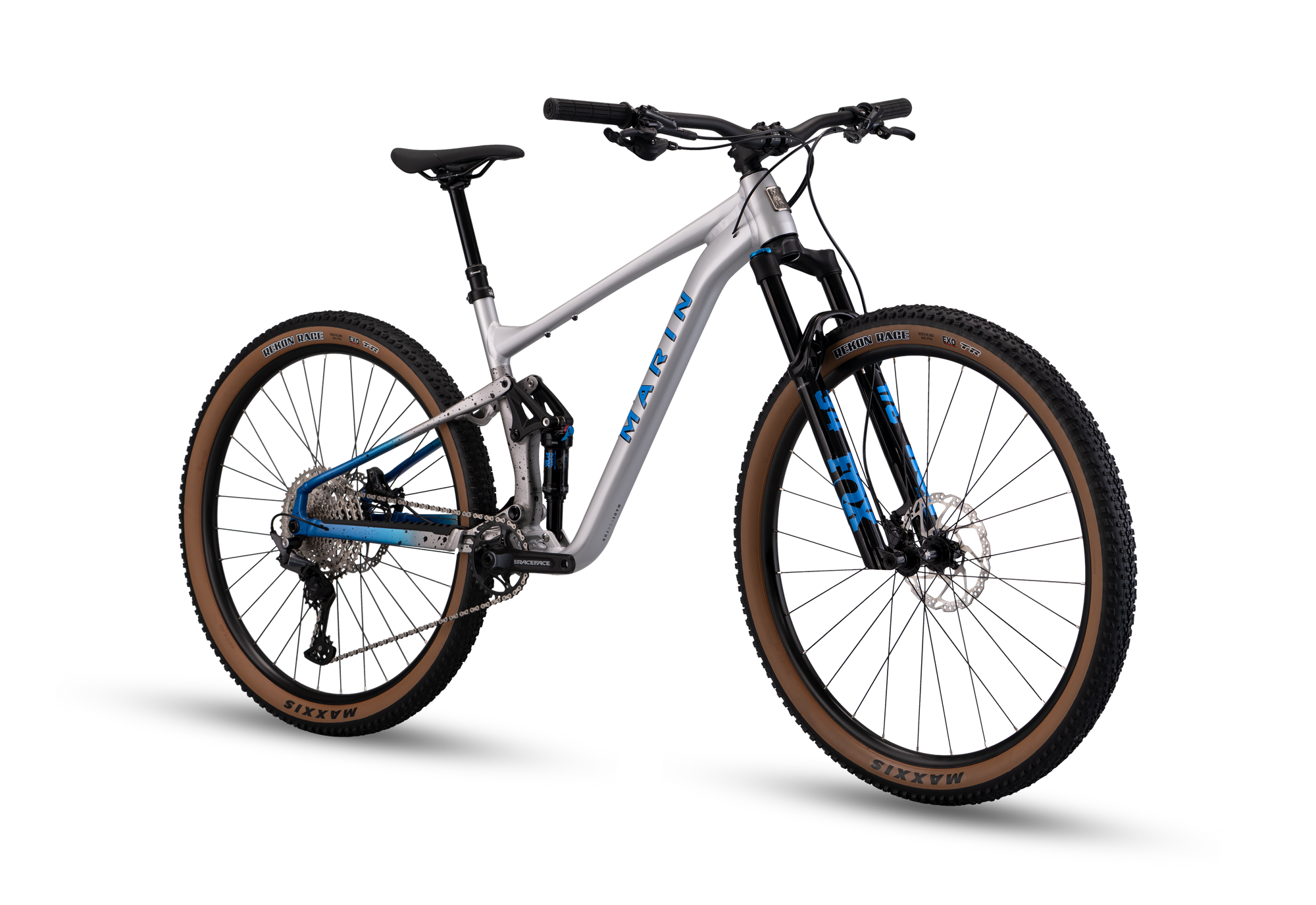

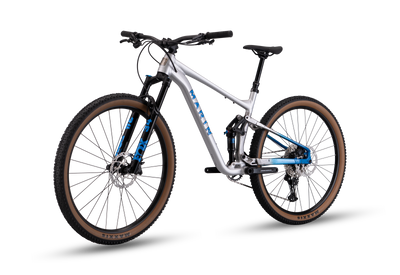

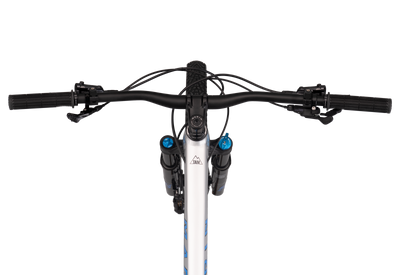

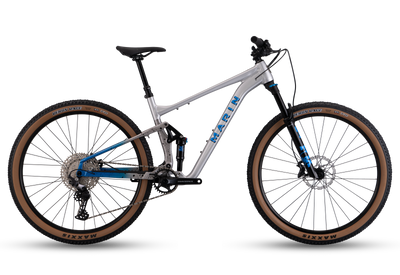

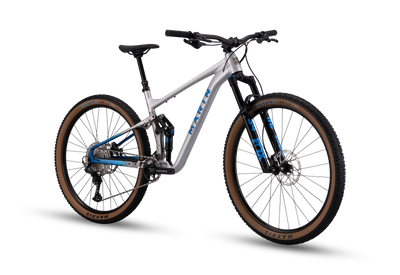

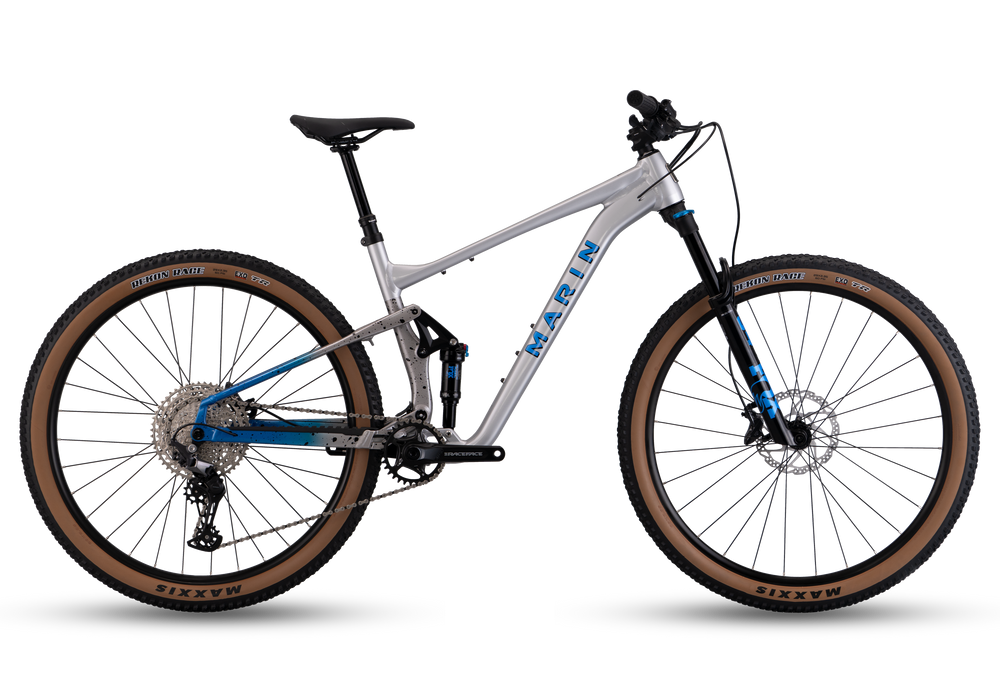

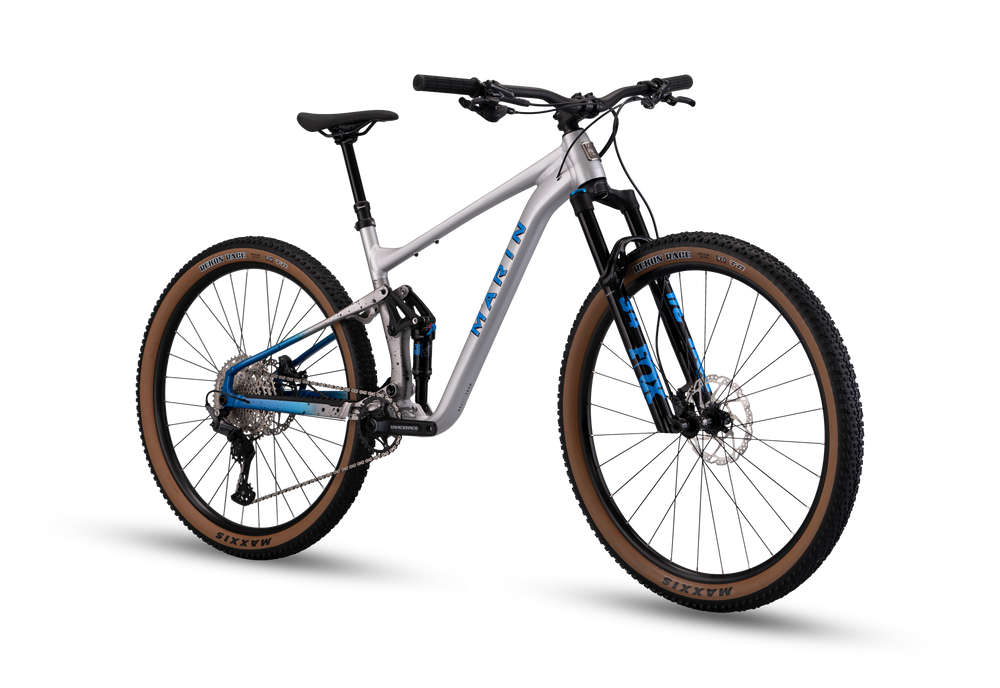

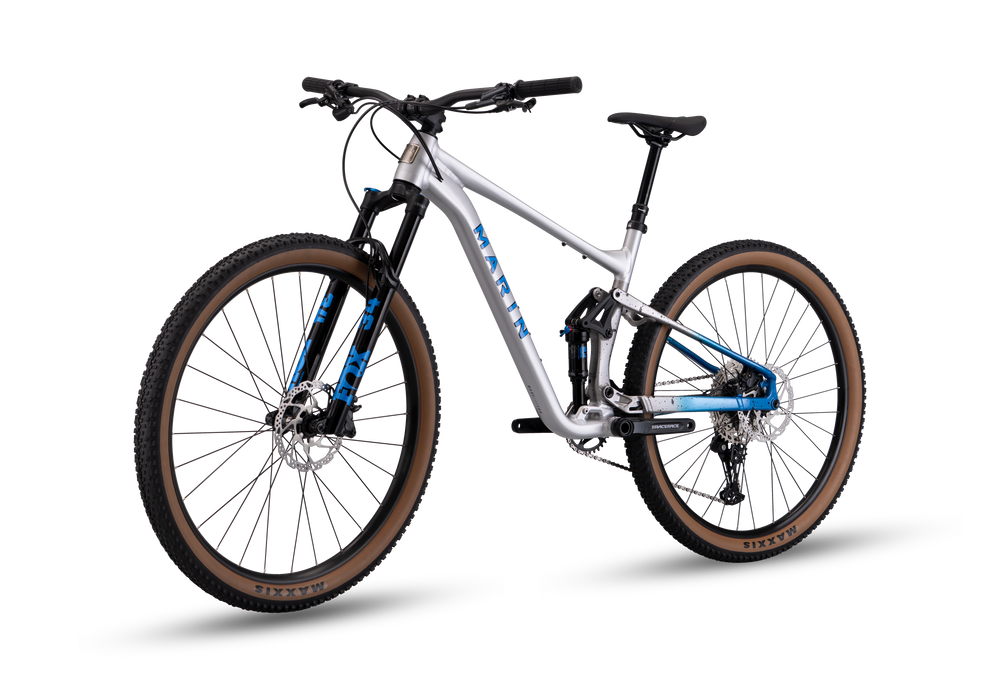

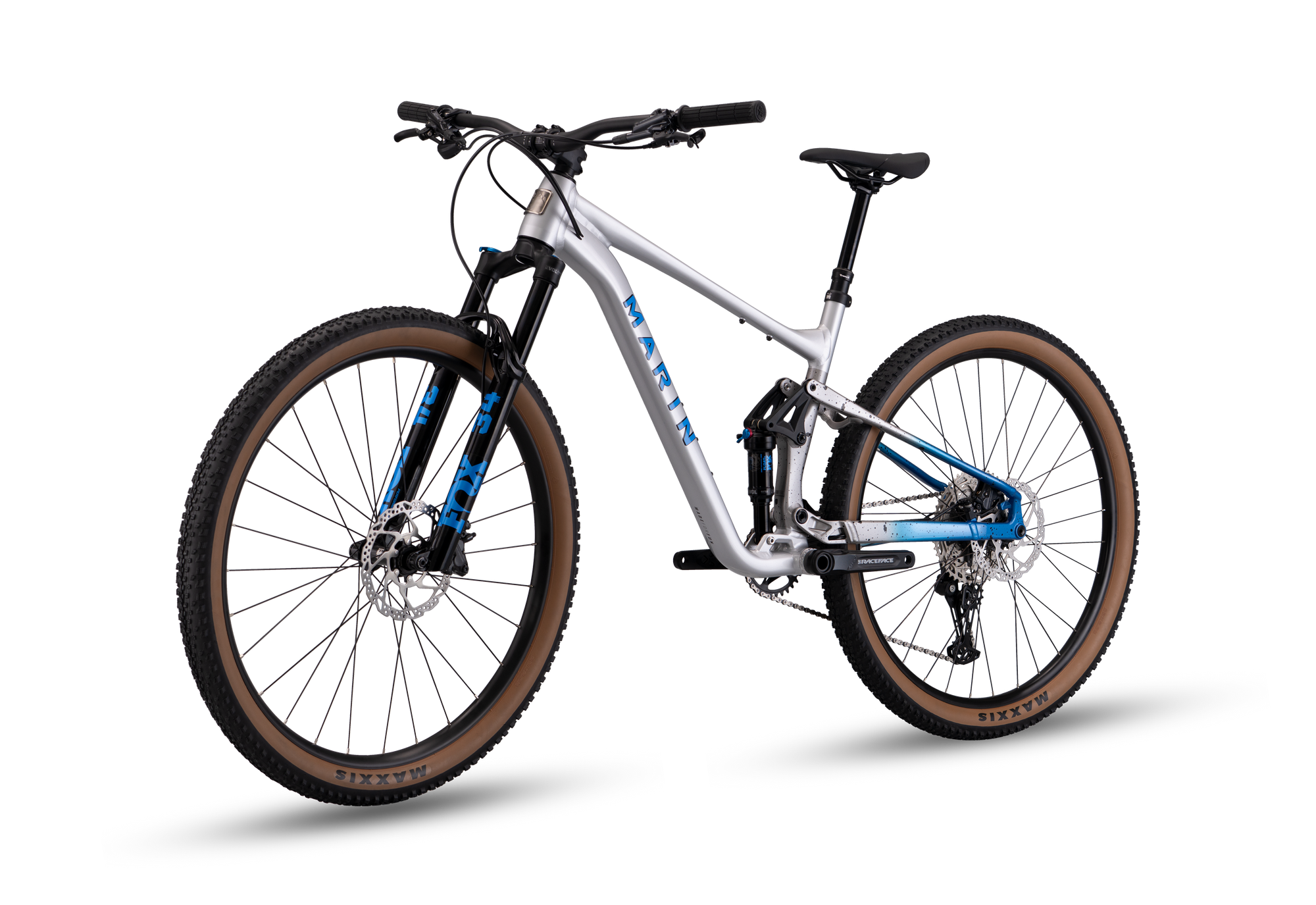

2026 TAM 2
