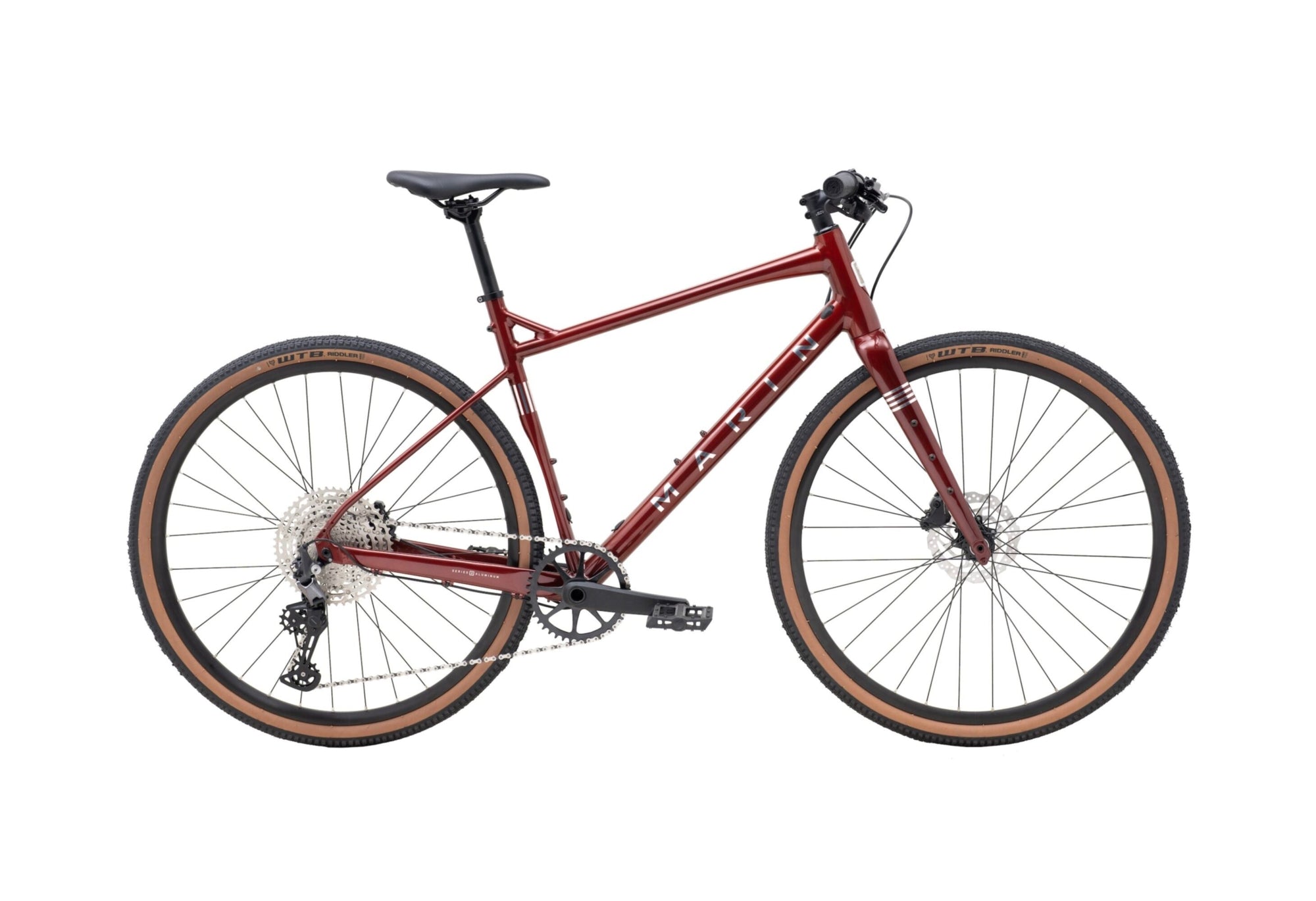

The DSX is a flat bar gravel bike based on our Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package capable of fast commutes, long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Marin Aluminum Double Wall, 21mm Inner, Disc Specific
Shimano Forged Aluminum, 142x12mm, Microspline, Disc, 32H
Forged Aluminum, 100x12mm, Disc, 32H
14g Black Stainless Steel
WTB Riddler, 700Cx45mm
Shimano Deore 12-Speed
Forged Aluminum, 42T Steel Narrow Wide Chainring
Sealed Outboard Bearing
KMC X12
Shimano Deore 12-Speed, 10-51T
Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
Shimano Hydraulic
Marin MiniRiser
Marin 3D Forged Alloy
Marin MTB
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Marin Alloy
Marin DSX
Commute Platform
Bolt-On Thru-Axles F and R
