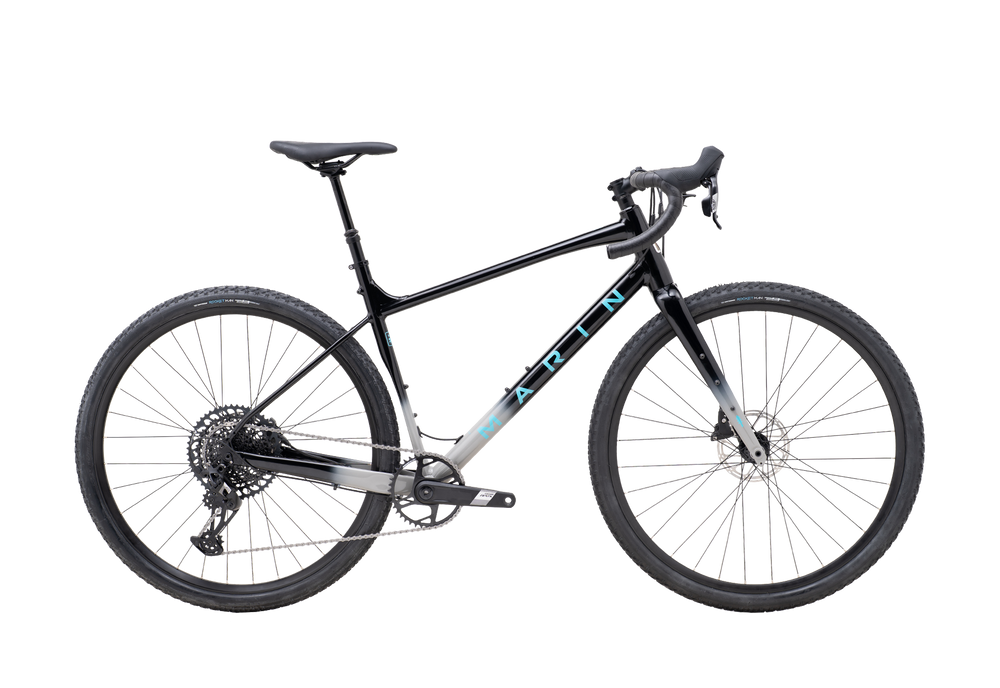

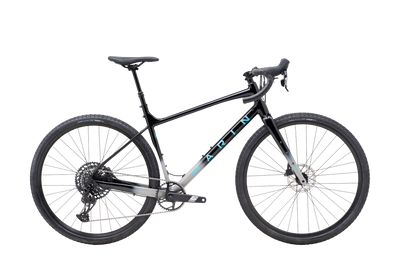

2025 Gestalt XR

GESTALT XR

£2,279.00

The Gestalt X is our hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do. Break off the fire road, down the singletrack and charge further and faster than ever before. All while keeping the versatility, challenge and fun of a bike with drop handlebars.

The Gestalt XR takes gravel to the next level. XR brings our MTB-inspired, Series 3 aluminum Gestalt X frame and adds a gravel-specific SRAM Apex 12-speed drivetrain, Apex hydraulic disc brakes, a TranzX dropper post, cushy and grippy 45mm wide Vee Tire Rubber and heaps of our own bespoke Marin components.

Colour: Black/Grey

Size

Details Specifications

Fork

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Frame

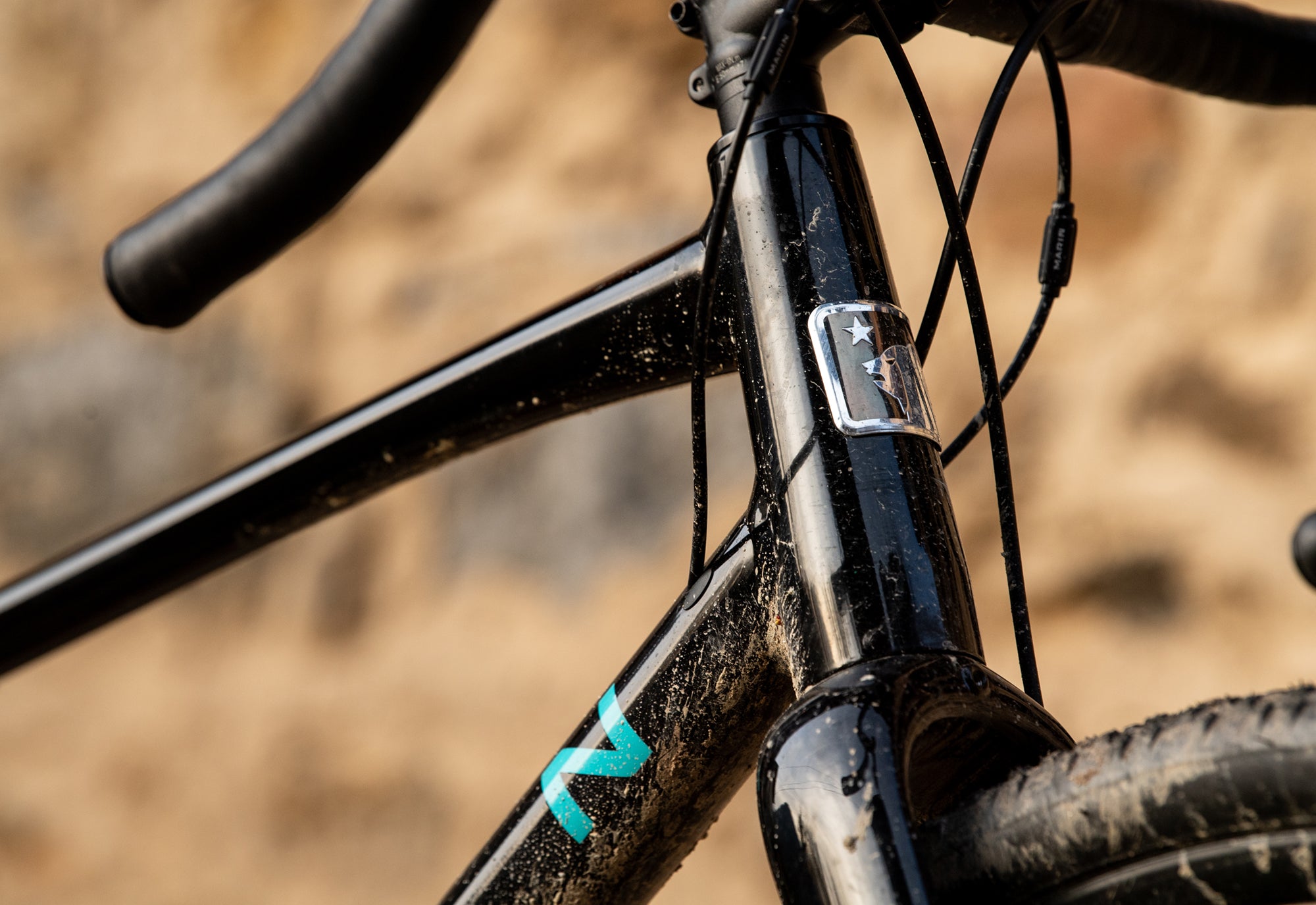

Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Rim

Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible

Hub Rear

Forged Aluminum Alloy, 142x12mm, Disc, 32H

Hub Front

Forged Aluminum Alloy, 100x12mm, Disc, 32H

Spokes

14g Black Stainless Steel

Tires

Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible

Shift Lever

Shimano GRX GX8010, 1x11-Speed, Integrated Dropper Lever

Crankset

FSA Gossamer Pro, Megatooth 42T Chainring, BB386EVO Alloy Spindle

Bottom Bracket

FSA MegaExo Threaded

Chain

KMC X11

Cassette

Shimano CS-M5100 11-Speed, 11-42T

Brakes Front

Shimano GRX Hydraulic Disc, 160mm Rotor

Brakes Rear

Shimano GRX Hydraulic Disc, 160mm Rotor

Brake Levers

Shimano GRX Hydraulic w/ Shifter and Integrated Dropper Lever

Handlebar

Marin Butted Alloy, Compact 16º Flared Drop

Stem

Marin 3D Forged Alloy

Grips

Marin Shock Absorbing Perforated Tape

Headset

FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost

TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm

Saddle

Marin Beyond Road Concept Elite

Extras

Bolt-On Thru-Axles F and R

Details Geometry

Geometry	S	M	L	XL
A Stack	547.6	566	589.1	621.5
B Reach	400	420	440	460
C Headtube angle	67.5°	67.5°	67.5°	67.5°
D Headtube length	130	150	175	210
E Seattube length	460	485	505	530
F Seattube angle	75°	74°	74°	74°
G Toptube effective	546.7	582.3	608.9	638.2
H Bb height	282.5	282.5	282.5	282.5
I Bb drop	80	80	80	80
J Chainstay	425	425	425	425
K Wheelbase	1065.2	1092.8	1122.4	1155.6
L Standover height	678.6	687.7	708.6	734.5
M Fork offset	50	50	50	50
N Seatpost diameter	27.2	27.2	27.2	27.2
O Handlebar width	440	460	480	480
P Stem length	50	50	50	50
Q Crank length	170	170	175	175
