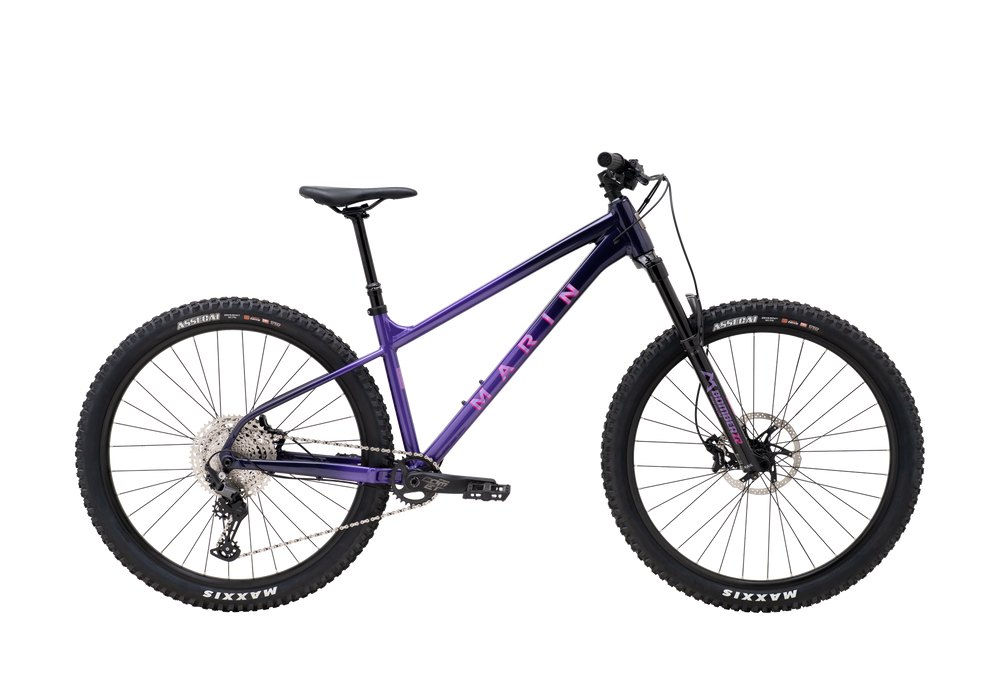

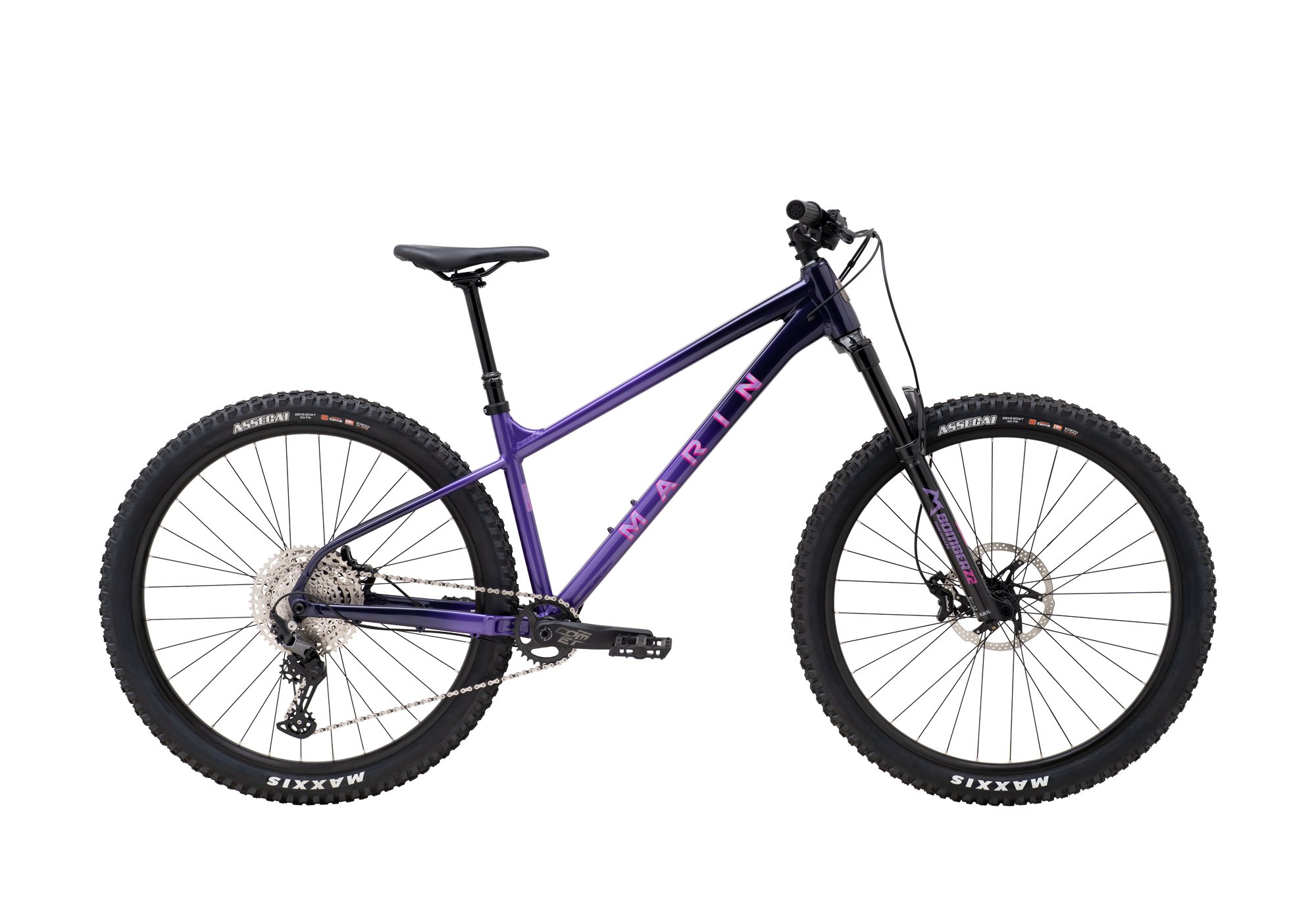

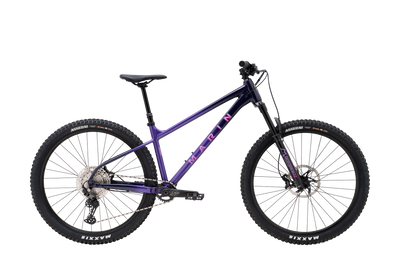

2025.1 San Quentin 3

San Quentin 3

£1,699.00

Dirt jump DNA with all-mountain pedigree. The Marin Bikes San Quentin 3 is the top dog in the SQ family.

We’ve worked tirelessly to create the very best-specced San Quentin ever but still kept the price tag down to earth and in reach of everyone. Marzocchi Z2 fork? Check. TRP 4-piston brakes and 12-speed drivetrain? TranzX dropper post? You got it. FSA cranks, Maxxis rubber and plenty of kick-ass Marin kit? Abso-freakin-lutely.

Colour: Purple Fade

Size

Wheel Size

29"

27.5"

29"

Details Specifications

Frame

All New Series 3 661 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

Front Suspension

Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle

Rim

Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible

Hub Rear

Shimano HB-MT41B, 148x12mm, Disc, Microspline Freehub Body

Hub Front

Shimano HF-MT41B, 11x15mm, Disc

Spokes

14g Black Stainless Steel

Tires

Maxxis Assegai, 27.5x2.5", 3C MAXX TERRA, EXO, Tubeless Compatible

Shift Lever

Shimano Deore, 12-Speed, SL-71R

Crankset

FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Bottom Bracket

Mego EXO 73mm BSA

Chain

KMC X-12 Silver and Black

Cassette

Shimano, Deore 12-Speed, 1-51T

Brakes Front

Tektro Slate EVO, 4-Piston Hydraulic, Resin Pads, 203mm Rotor

Brakes Rear

Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 180mm Rotor

Brake Levers

Tektro Slate EVO, I-Spec EV Compatible

Handlebar

Marin Mini-Riser, 661 Double Butted Aluminum, 78mm Width, 28mm Rise, 5º Up, 9º Back

Stem

Marin 3D Forged Alloy, 35mm

Grips

Marin Grizzly Lock On

Headset

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost

X-Fusion Manic, 1x Composite Remote, Size S 15mm Travel, All Other Sizes: 17mm Travel, 3.9mm

Saddle

Marin Speed Concept

Pedals

Nylon Platform

Details Geometry

Geometry	S	M	L	XL
A Stack	618	622.5	645	650
B Reach	422	450	470	500
C Headtube angle	64°	64°	64°	64°
D Headtube length	110	115	125	130
E Seattube length	310	340	410	420
F Seattube angle	77°	77°	77°	77°
G Toptube effective	564.7	593.7	619	650
H Bb height	316	316	327	327
I Bb drop	50	50	50	50
J Chainstay	425	425	430	430
K Wheelbase	1173.4	1203.6	1236	1268
L Standover height	627.7	656.4	688	695
M Fork offset	37	37	44	44
N Seatpost diameter	30.9	30.9	30.9	30.9
O Handlebar width	780	780	780	780
P Stem length	35	35	35	35
Q Crank length	170	170	170	170
