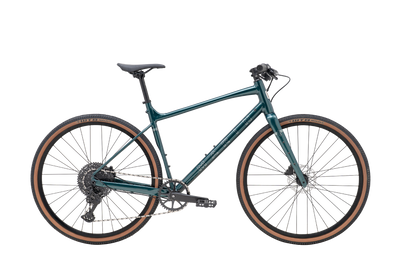

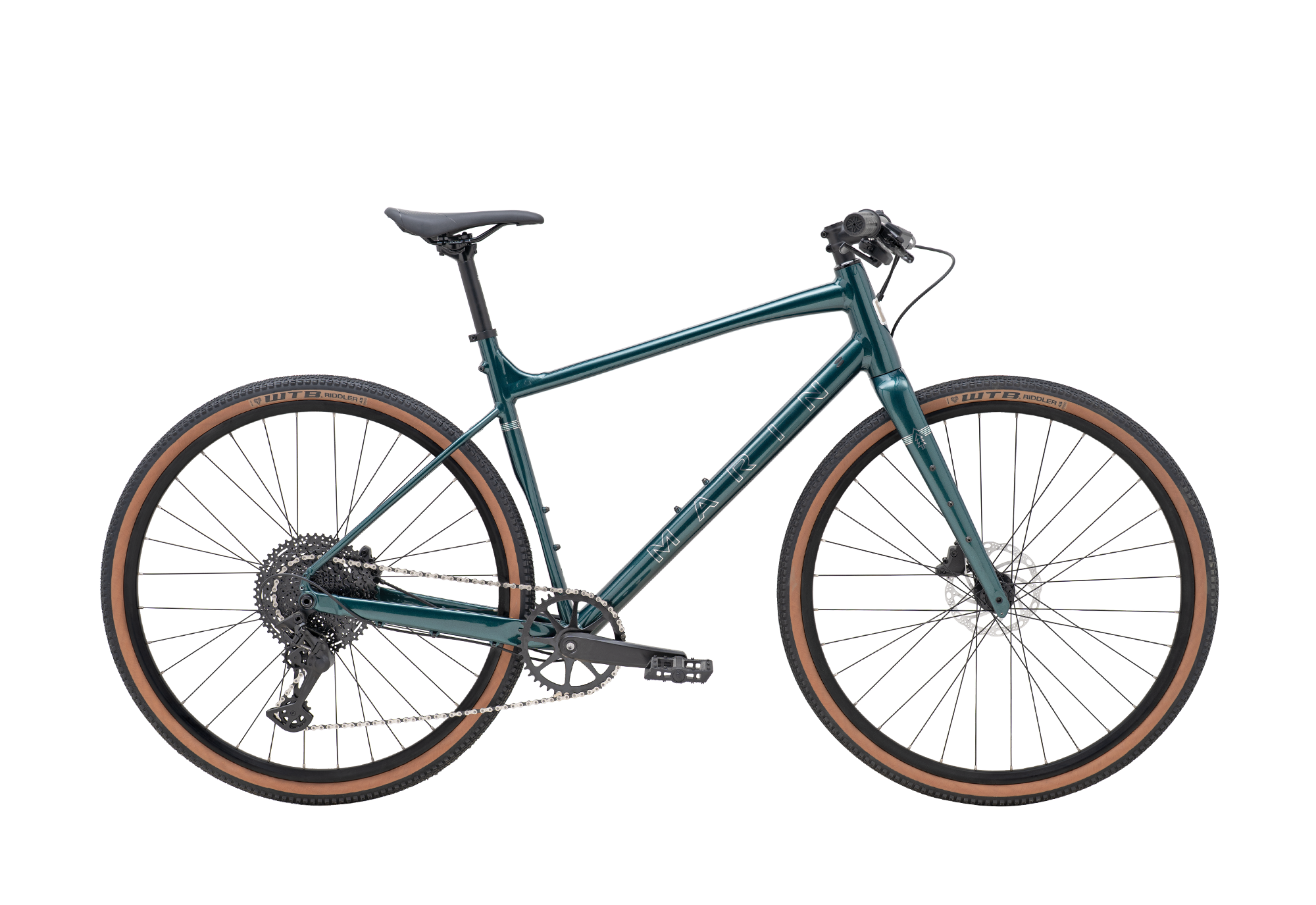

DSX 1

£899.00

Hopping up to a higher-spec Series 3 aluminum frame and a carbon fiber fork, the DSX 1 is lighter and slightly stiffer than the base model bike. There’s also an 11-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

Size

small

medium

large

xlarge

Color: Green/ Silver

Specifications Geometry Technology Services

DSX 1

£899.00

Size

small

medium

large

xlarge

Color: Green/ Silver

Details Specifications

Fork

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Frame

Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Rim

Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

Hub Rear

Forged Aluminum, 142x12mm, Disc Specific, 32H

Hub Front

Forged Aluminum, 100x12mm, Disc Specific, 32H

Spokes

14g Black Stainless Steel

Tires

WTB Riddler, 700Cx45mm

Shift Lever

Shimano Deore, SLM6100, 12-Speed

Crankset

Forged Aluminum, 42T Steel Narrow Wide Chainring

Bottom Bracket

Sealed Outboard Bearing

Chain

KMC X12

Cassette

Shimano Deore, CS-M6100, 12-Speed, 10-51T

Brakes Front

Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor

Brakes Rear

Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor

Brake Levers

Shimano Hydraulic

Handlebar

Marin MiniRiser

Stem

Marin 3D Forged Alloy

Grips

Marin MTB

Headset

FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost

Marin Alloy

Saddle

Marin DSX

Pedals

Nylon Platform

Details Geometry

Geometry	Small	Medium	Large	XLarge
A Stack	640	680	680	680
B Reach	70	70	70	70
C Headtube angle	74°	74°	74°	74°
D Headtube length	430	480	520	558
E Seattube length	279.5	279.5	279.5	279.5
F Seattube angle	536.1°	569.2°	592.2°	615.3°
G Toptube effective	80	80	80	80
H Bb height	50	50	50	50
I Bb drop	658.76	700.51	730.39	758.5
J Chainstay	544.4	572.5	600.6	628.7
K Wheelbase	27.2	27.2	27.2	27.2
L Standover height	425	425	425	425
M Fork offset	1024.42	1060	1085.4	1110.9
N Seatpost diameter	380	405	420	435
O Handlebar width	170	175	175	175

Featured 2025.1 DSX 1

Shimano 11 Speed Gears

Dropper Post Compatible

Series 3 Aluminum Frame

Tektro Hydraulic Brakes

Find Your Fit

Your Height 5'3" / 160cm

slide the scale to your height measurement

You ride a

Small / Green/ Silver

DSX 1
