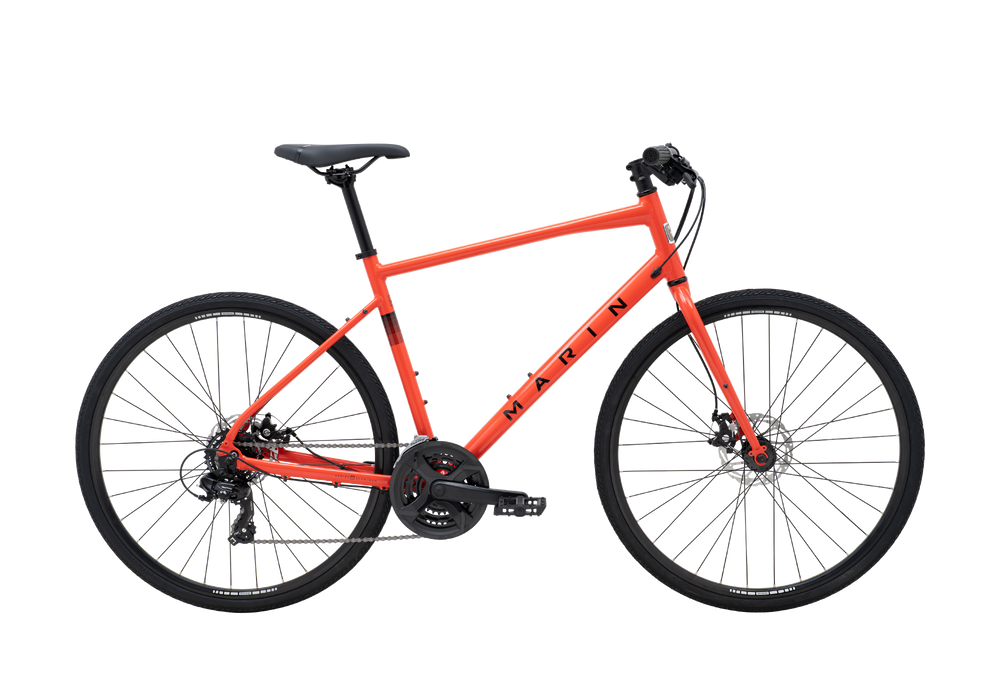

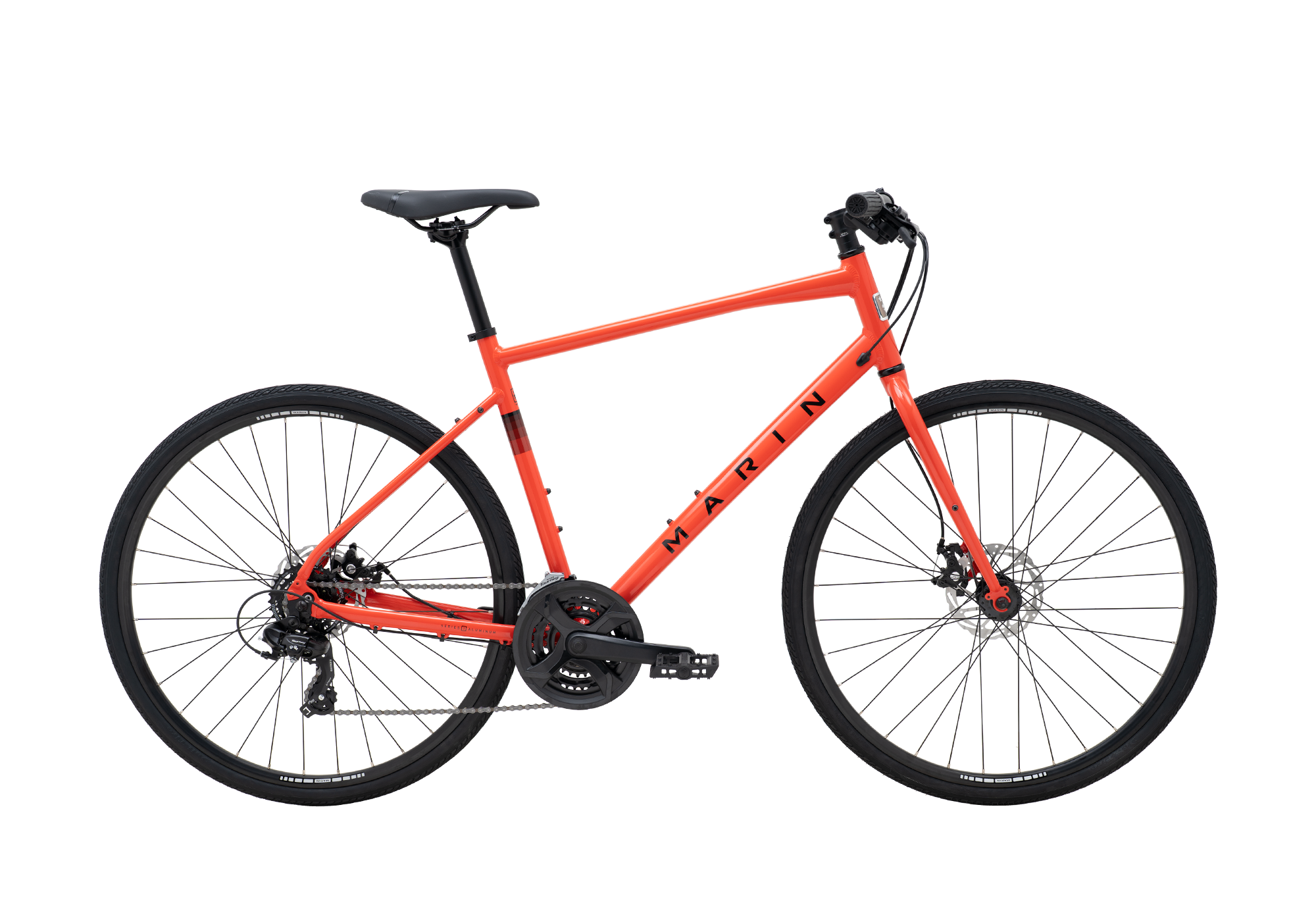

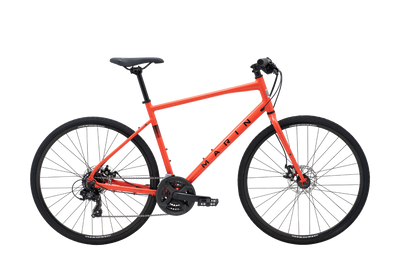

The Fairfax 1 is the most affordable in the collection. Named “Best Hybrid” many years running by Wirecutter it’s built around a lightweight Series 1 aluminum frame and a sturdy CrMo fork and comes with a 3x7-speed Shimano drivetrain, Tektro mechanical disc brakes and plenty of reliable Marin components.
Step-thru bike frames are ideal for riders wanting easier access and dismounts, slow-speed urban cycling and riders that need to load their bike up with bags or kids.

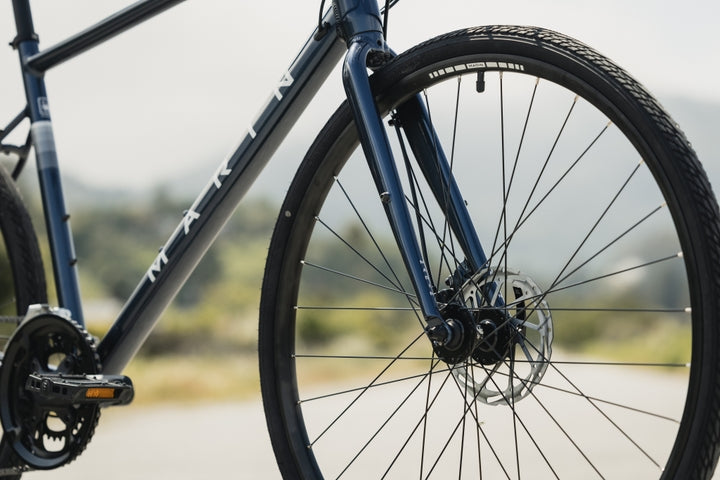

Cr-Mo Steel, Straight Blade, Disc Mount, QR Dropouts, Fender and Rack Eyelets

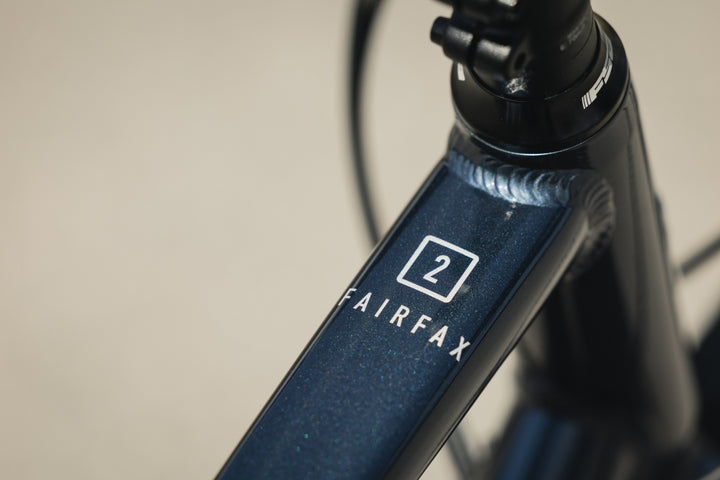

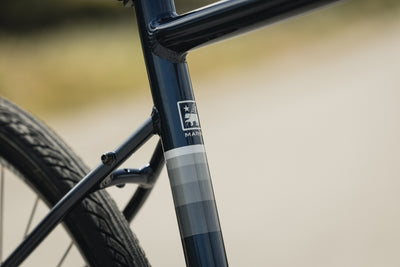

Series 1 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender, Rack and Kickstand Mounts
Marin Aluminum Double Wall, Disc Specific
Forged Aluminum Alloy, Disc, 32H
Forged Aluminum Alloy, Disc, 32H
14g Stainless Steel
Fitness 700Cx35mm
Shimano Shifter/Brake Lever Combo, 3x7-Speed
Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard
Sealed Cartridge Bearings, Square Taper
KMC Z8
Shimano CSHG200, 7-Speed, 12-32T

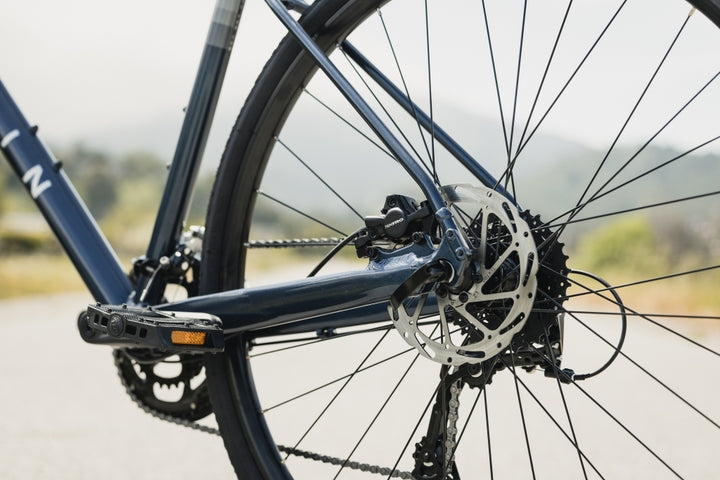

Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Shimano w/ Integrated Shifters
Marin Alloy Flat, 31.8mm
Marin Alloy Threadless
Marin Commute
FSA, Threadless
Marin Alloy, 27.2mm
Marin Fitness Plush
Nylon Platform

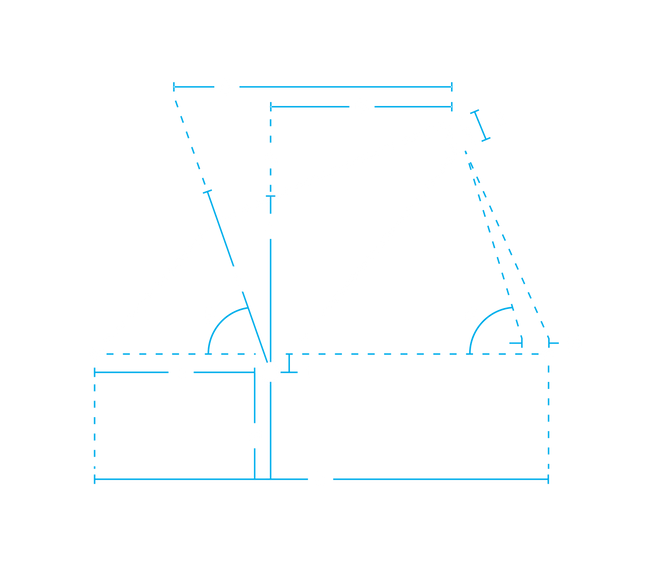

| Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| A Stack | 557 | 571.3 | 590 | 609 | 637.3 |
| B Reach | 385 | 400 | 420 | 440 | 455 |
| C Headtube angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D Headtube length | 140 | 155 | 175 | 195 | 225 |
| E Seattube length | 380 | 430 | 480 | 520 | 550 |
| F Seattube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| G Toptube effective | 550 | 569.2 | 594.8 | 620.4 | 643.8 |
| H Bb height | 283.5 | 283.5 | 283.5 | 283.5 | 283.5 |
| I Bb drop | 70 | 70 | 70 | 70 | 70 |
| J Chainstay | 445 | 445 | 445 | 445 | 445 |
| K Wheelbase | 1050.01 | 1070 | 1096.7 | 1123.4 | 1148.4 |
| L Standover height | 660.74 | 705.38 | 745.2 | 780.34 | 809.68 |
| M Fork offset | 50 | 50 | 50 | 50 | 50 |
| N Seatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| O Handlebar width | 640 | 640 | 680 | 680 | 680 |
| P Stem length | 70 | 70 | 70 | 70 | 70 |
| Q Crank length | 170 | 170 | 175 | 175 | 175 |
Your Height 5'3" / 160cm
slide the scale to your height measurement
You ride a
ROARANGE / L
Fairfax 1
