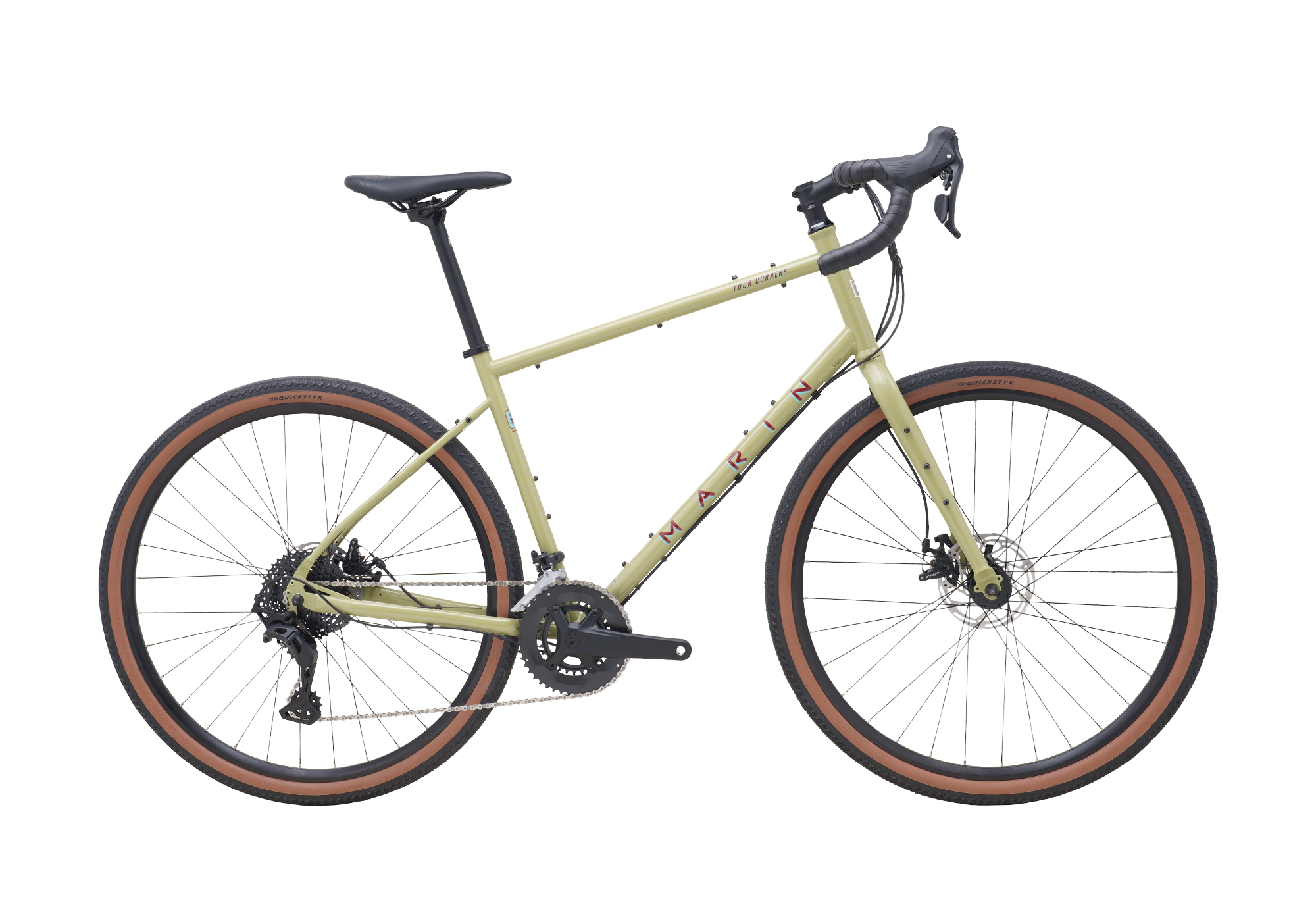

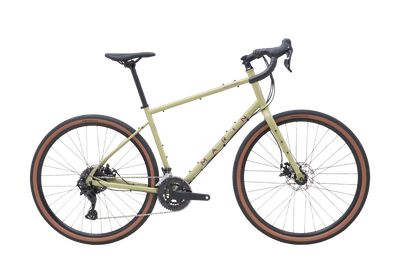

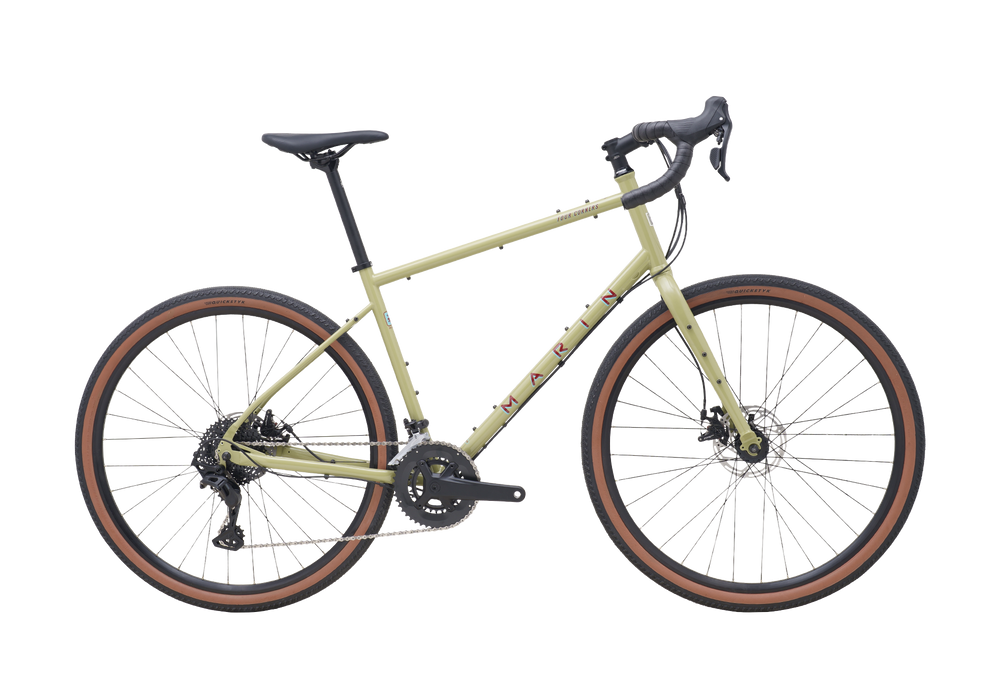

Four Corners 1

£0.00

£949.00

£0.00

£949.00

Midweek commute or weekend adventures? A three day audax or a 12 month round the world tour? The Four Corners 1 now comes with a fresh 2x9 MicroShift Sword drivetrain offering improved reliability and a wider range of useable gears.

The butted 4130 CroMo steel frame and fork are designed to be comfortable on rough roads but to also handle fully loaded touring and bike packing. We’ve included six bottle mounts, rack and fender eyelets, lowrider fork mounts, generous tire clearance and disc brakes to set you up for all conditions and all terrain.

Whatever you choose is no problem for the Marin Four Corners, our steel-framed explorer that’s as comfortable on the asphalt as it is in the dirt.

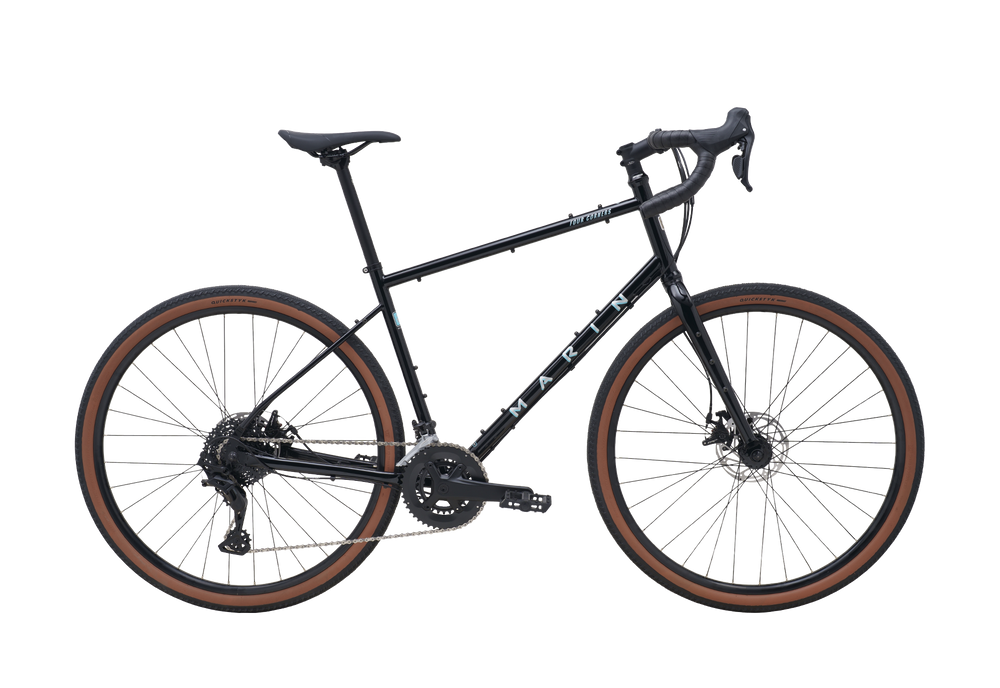

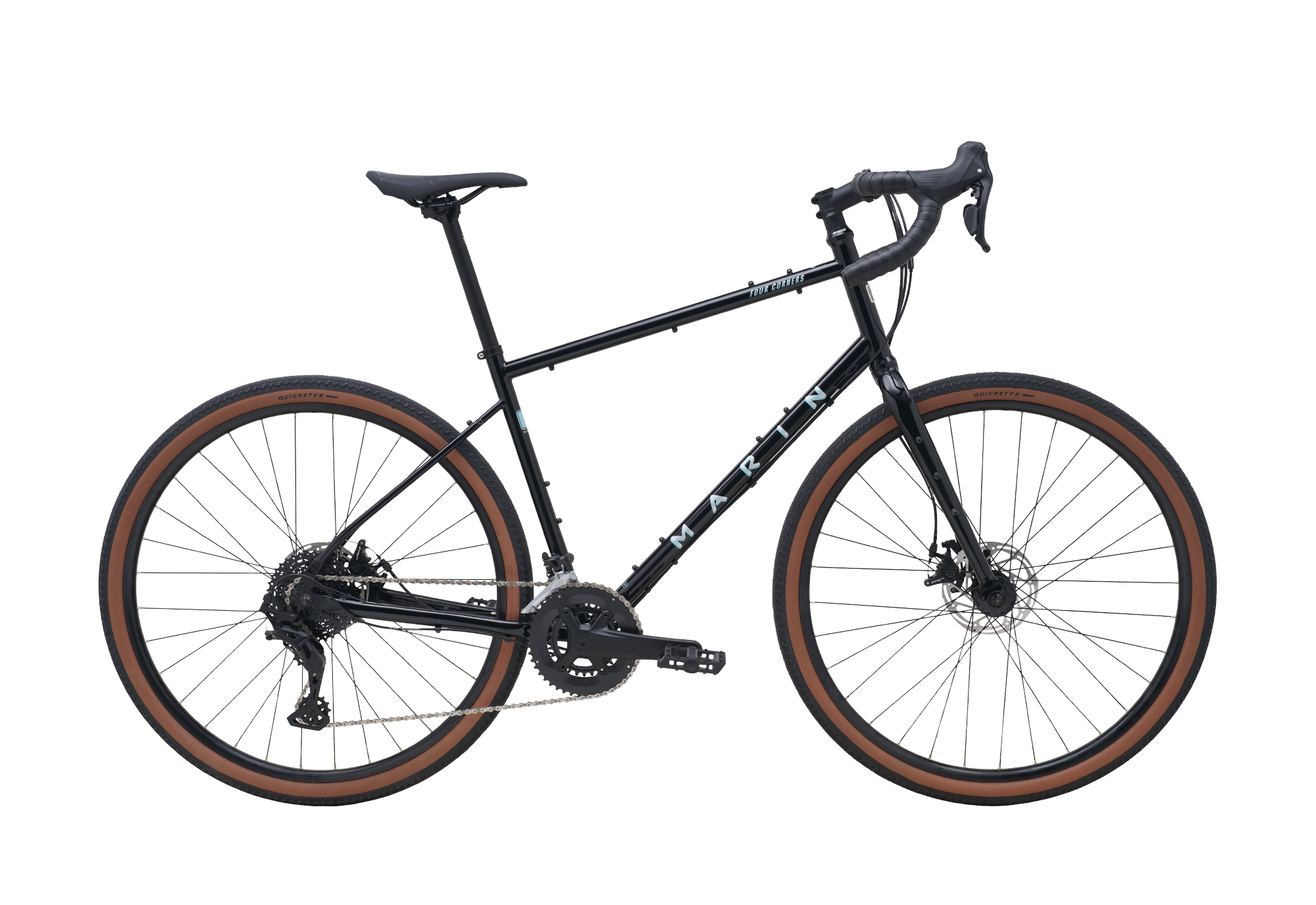

Colour: Black

Size

Specifications Geometry Technology Services

Four Corners 1

£0.00

£949.00

£0.00

£949.00

Colour: Black

Size

Details Specifications

Fork

Series 1 CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount

Frame

Series 1 CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C) , Biometric Geometry, Fender and Rack Mounts, Disc Mount

Rim

Marin Aluminum, Double Wall, Disc Specific

Hub Rear

Forged Aluminum Alloy, Disc, 32H

Hub Front

Forged Aluminum Alloy, Disc, 32H

Spokes

14g Black Stainless Steel

Tires

Vee Tire Co., GPVee, 700/650x40

Shift Lever

Shimano Sora ST300 3x9-Speed

Crankset

Shimano Sora FC3030, 50-39-30T

Bottom Bracket

Shimano

Chain

KMC X9

Cassette

Shimano HG200 9-Speed, 11-34T

Brakes Front

Tektro Spyre-C Road Mechanical Disc, 160mm Rotor

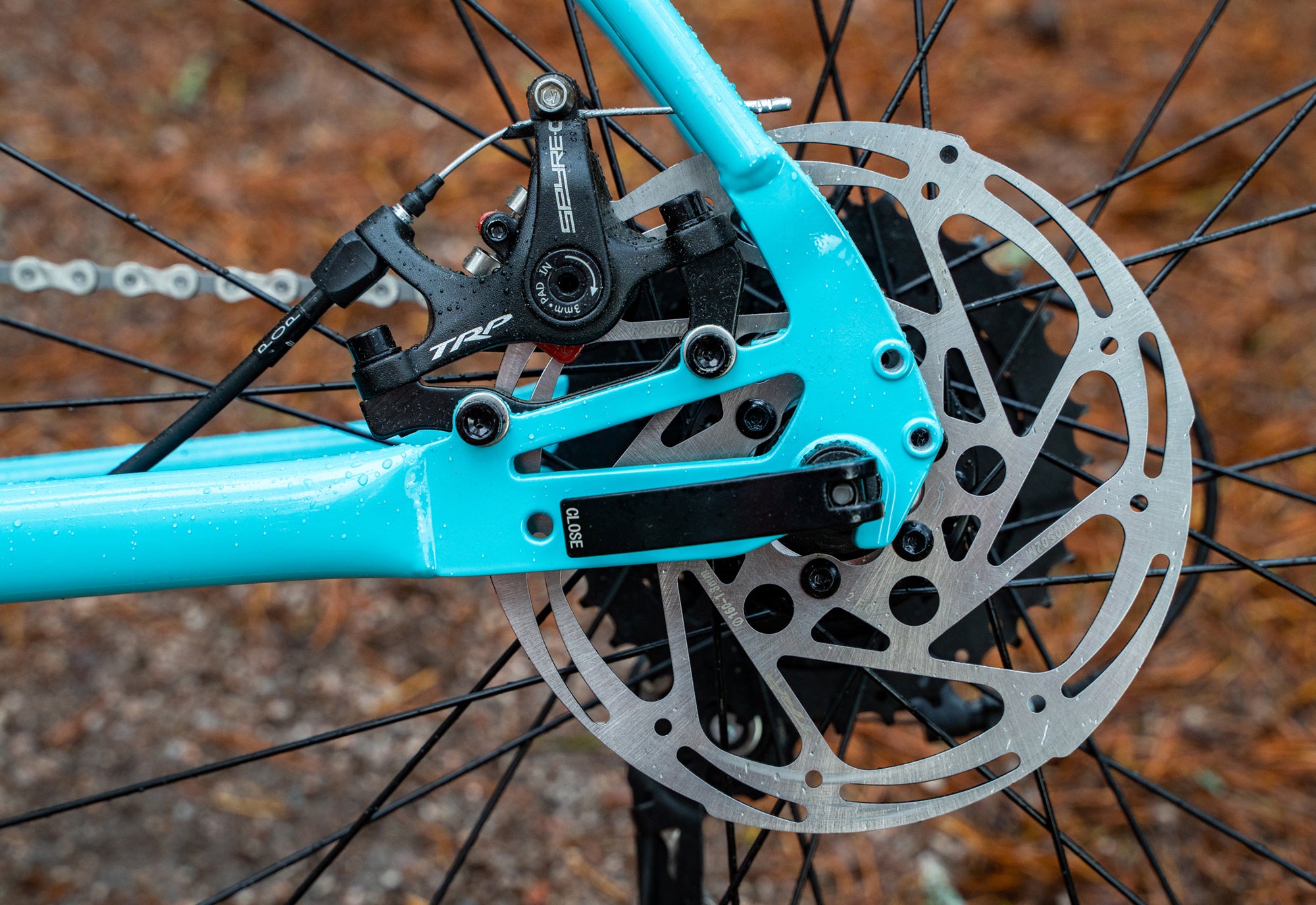

Brakes Rear

Tektro Spyre-C Road Mechanical Disc, 160mm Rotor

Brake Levers

Shimano Sora ST300 3x9-Speed

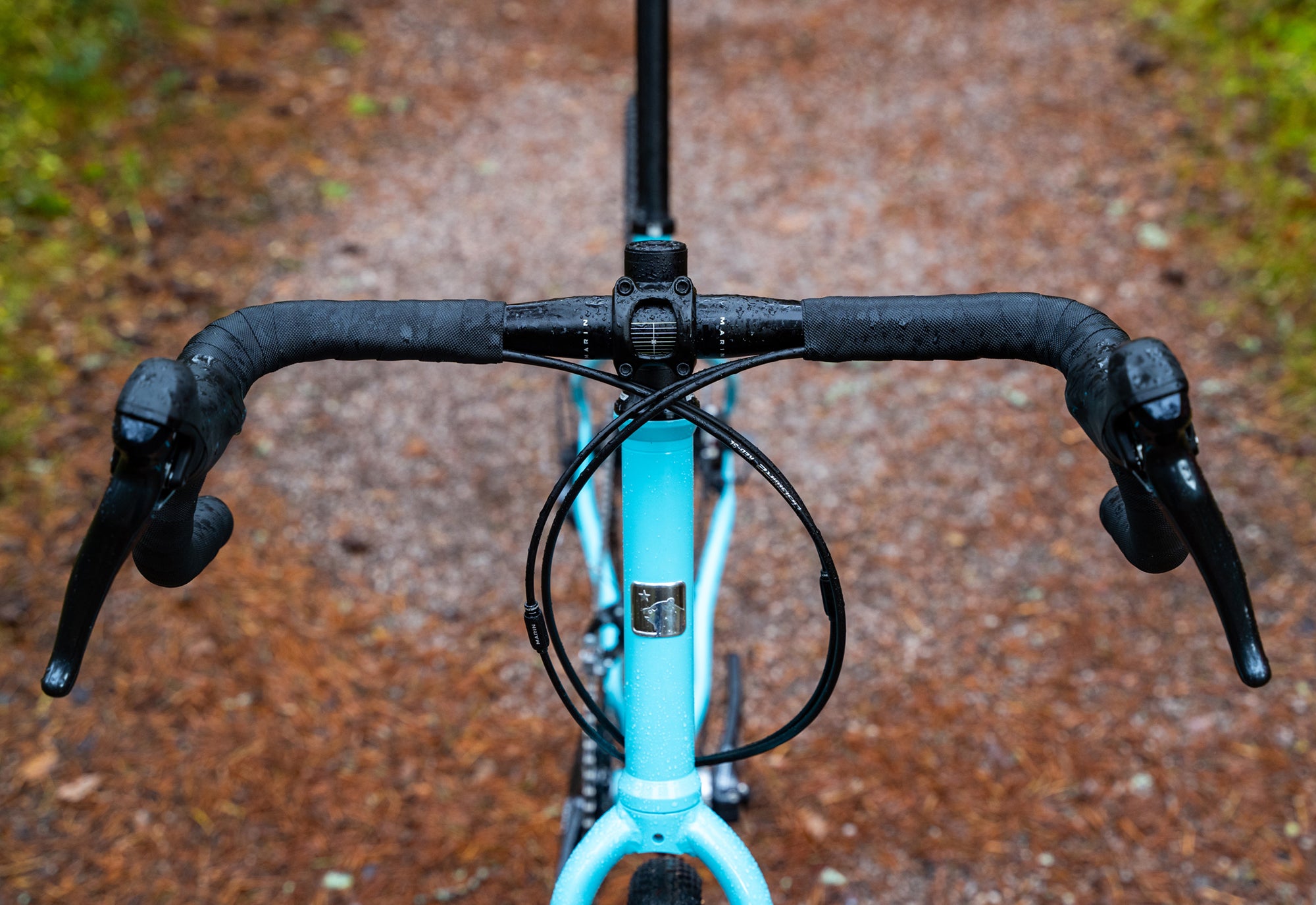

Handlebar

Marin Butted Alloy, Compact 16º Flared Drop

Stem

Marin 3D Forged Alloy

Grips

Marin Comfort Bar Tape, Shock Absorbing Gel Pads

Headset

FSA No.8D, Sealed Cartridge Bearings

Seatpost

Marin Alloy, 27.2mm

Saddle

Marin MTB

Pedals

Trekking Platform

Details Geometry

Geometry	XS	S	M	L	XL
A Stack	560	580	618	648	679
B Reach	376.7	381	403.3	412.6	426.6
C Headtube angle	70°	70°	71°	71°	71°
D Headtube length	167	188	188	209	252
E Seattube length	381	422	462	495	528
F Seattube angle	74.5°	73.5°	73.5°	72.5°	72°
G Toptube effective	532	553	586	617	647
H Bb height	291	291	288.5	288.5	288.5
I Bb drop	53.5	53.5	72	72	72
J Chainstay	432	432	450	450	450
K Wheelbase	1035	1047	1087	1107	1132
L Standover height	668	707	745	777	810
M Fork offset	43	43	49	49	49
N Seatpost diameter	27.2	27.2	27.2	27.2	27.2
O Handlebar width	400	400	420	420	440
P Stem length	70	70	70	70	70
Q Crank length	170	170	175	175	175

Featured 2025.1 Four Corners 1

2 x 9 MicroSHIFT Transmission

Series 1 Butted 4130 CrMo Steel Frame

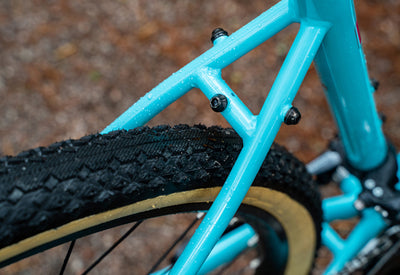

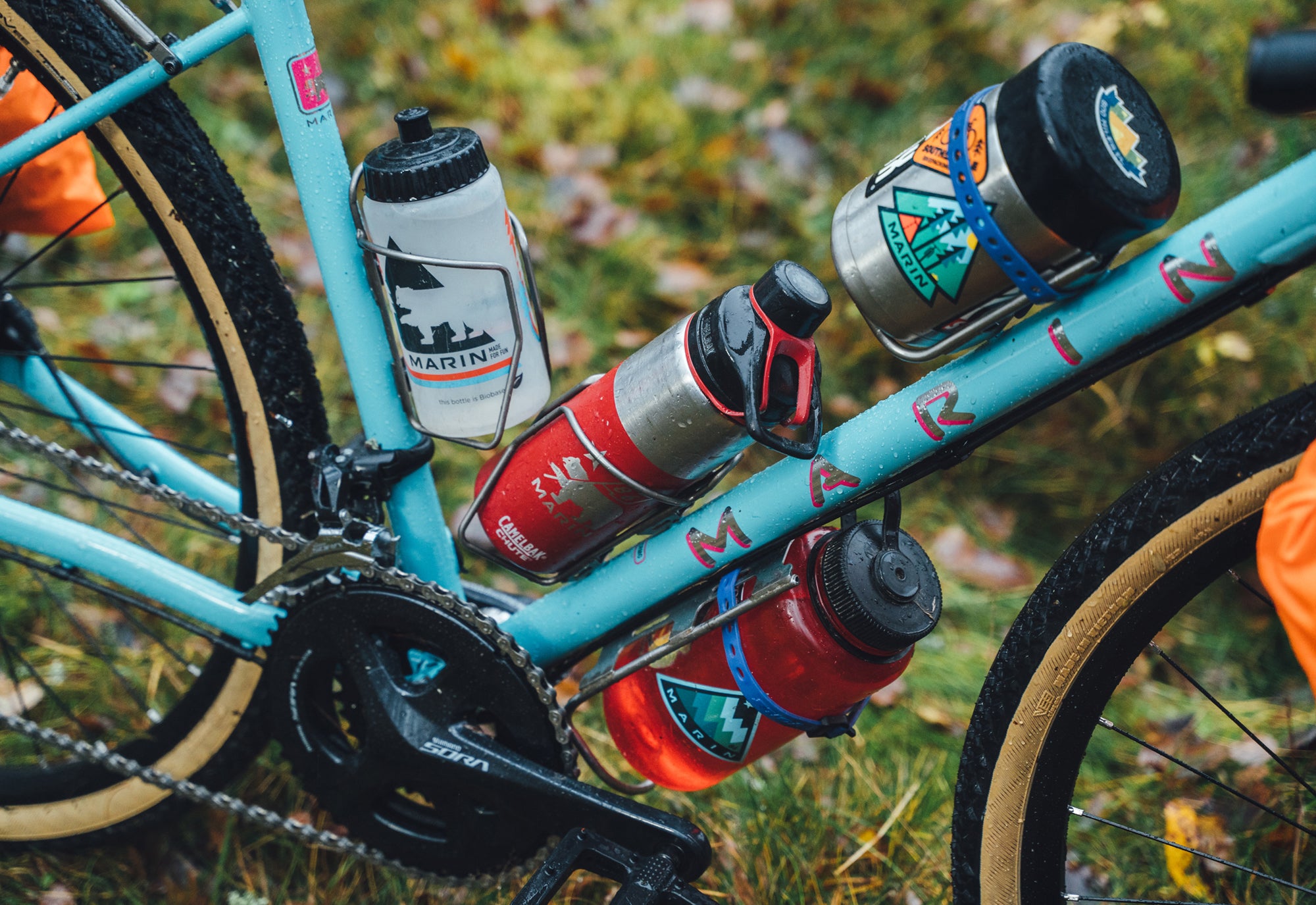

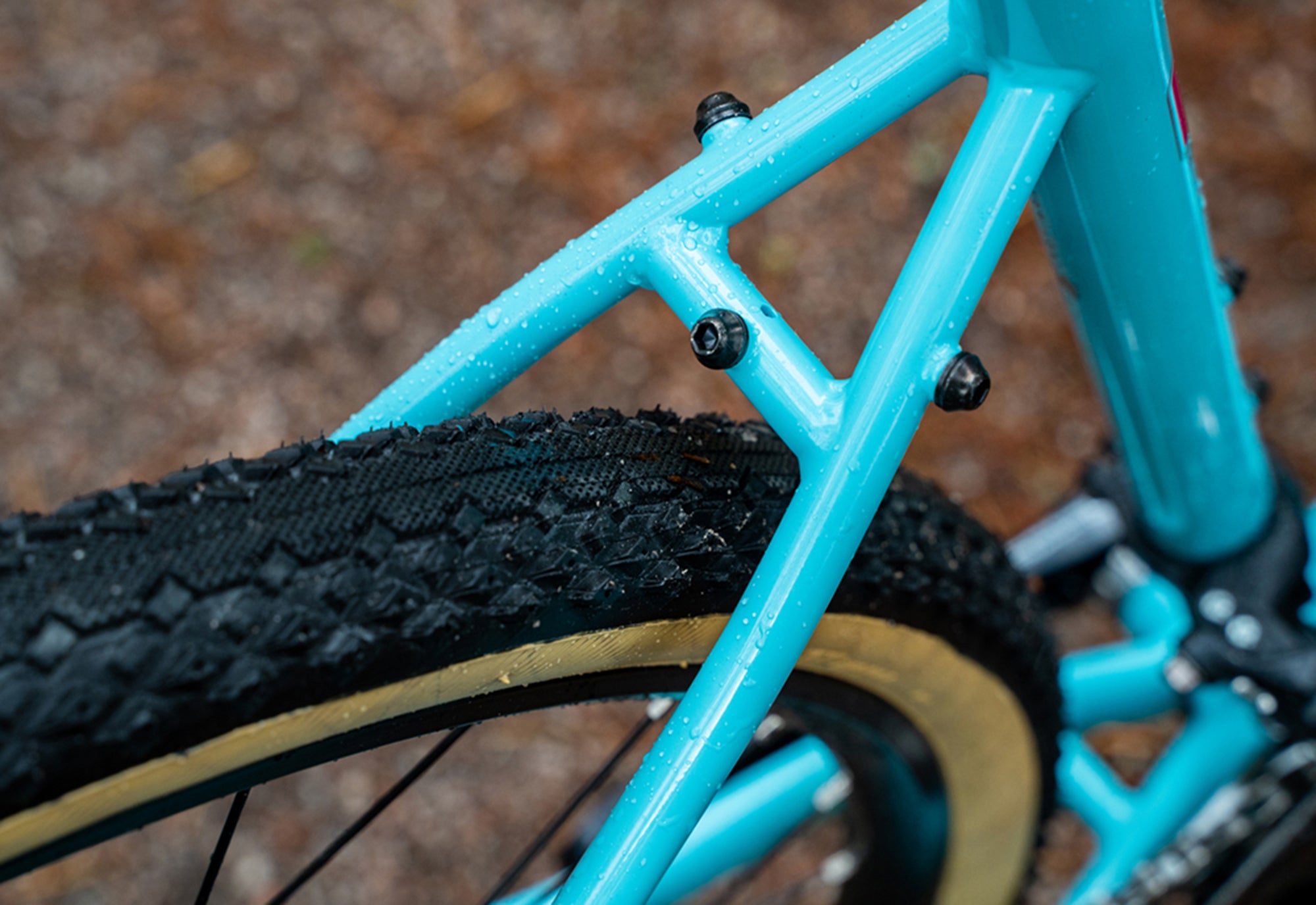

Bottle, Rack and Fender Mounts

Find Your Fit

Your Height 5'3" / 160cm

slide the scale to your height measurement

You ride a

Black / XS

Four Corners 1
