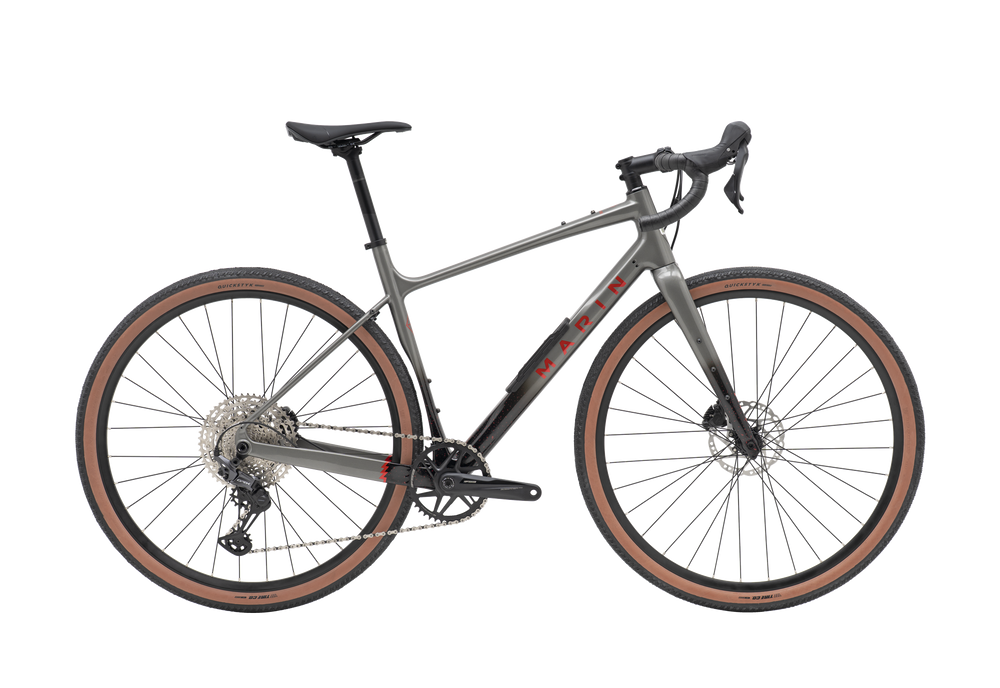

Gray bicycle with brown tires on a white background
Person holding a black bike tool case with a bicycle in the background
Close-up of a bicycle chain and gear system with a blurred background
White bicycle with brown tires leaning against a brick wall with graffiti.
Person riding a bicycle on a forest trail

HEADLANDS 1

£2,499.00

£2,499.00

£2,499.00

£2,499.00

£2,499.00

£2,499.00

Trustpilot

The Marin Headlands 1 offers bags of fun, adventure and performance without the loftier price point of the Headlands 2.

Gravel-specific Shimano GRX drivetrain with an FSA crankset, GRX hydraulic brakes, Vee Tire Co tires and Marin wheels and finishing kit all add up to a whole mountain of fun and adventure.

Colour: GREY/BLACK
Size
49

Tech Documents

Expand Tech Documents Collapse Tech Documents
View tech documents here (opens in new tab)
Specifications Geometry Technology Services

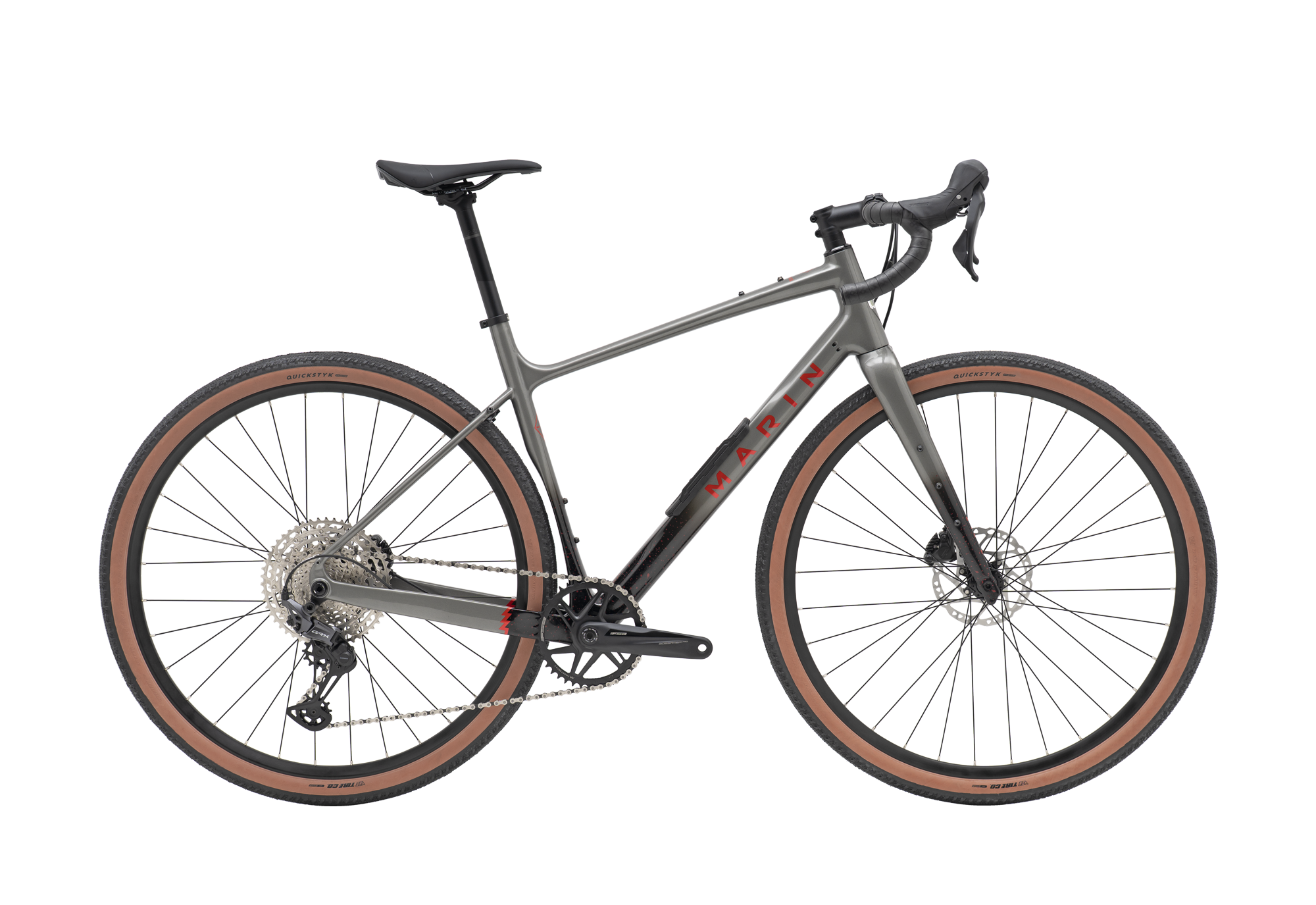

Gray bicycle with brown tires on a white background
Person holding a black bike tool case with a bicycle in the background
Close-up of a bicycle chain and gear system with a blurred background
White bicycle with brown tires leaning against a brick wall with graffiti.
Person riding a bicycle on a forest trail

Details Specifications

Fork

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Frame

Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, UDH Dropout, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Bear Box Downtube Storage

Rim

Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible

Hub Rear

Forged Aluminum Alloy, Disc, 32H

Hub Front

Forged Aluminum Alloy, Disc, 32H

Spokes

Double Butted Stainless

Tires

Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible

Shift Lever

Shimano GRX RX610

Crankset

FSA Gossamer Pro, 1x12, MegaExo Hollow CrMo Spindle, 42T

Bottom Bracket

FSA MegaExo, BSA, Sealed Cartridge Bearings

Chain

KMC X12

Cassette

Shimano CSM6100, 12-Speed, 10-51T

Brakes Front

Shimano GRX, RX400, Hydraulic Disc, 160mm Rotor

Brakes Rear

Shimano GRX, RX400, Hydraulic Disc, 160mm Rotor

Brake Levers

Shimano GRX w/ Integrated Shifter

Handlebar

Marin Butted Alloy, Compact 16º Flared Drop

Stem

Marin 3D Forged Alloy

Grips

Marin Shock Absorbing Tape

Headset

FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost

Marin Alloy, 27.2mm

Saddle

Marin Beyond Road Concept Elite

Details Geometry

Geometry 49 52 54 56 58 60
A Stack 541 555 569 588 607 626
B Reach 370 372 372 385 410 425
C Headtube angle 70.5° 70.5° 70.5° 70.5° 70.5° 70.5°
D Headtube length 110 125 140 160 180 200
E Seattube length 440 470 490 510 530 550
F Seattube angle 74.5° 74° 73.5° 73.5° 73.5° 73.5°
G Toptube effective 520 531 541 559 590 610
H Bb height 289 289 289 289 289 289
I Bb drop 76 76 76 76 76 76
J Chainstay 420 420 420 420 420 420
K Wheelbase 1001 1008 1013 1032 1064 1086
L Standover height 684 701 705 725 745 765
M Fork offset 50 50 50 50 50 50
N Seatpost diameter 27.2 27.2 27.2 27.2 27.2 27.2
O Handlebar width 420 420 420 440 440 440
P Stem length 60 60 60 60 70 70
Q Crank length 170 170 175 175 175 175

Featured 2025.1 HEADLANDS 1

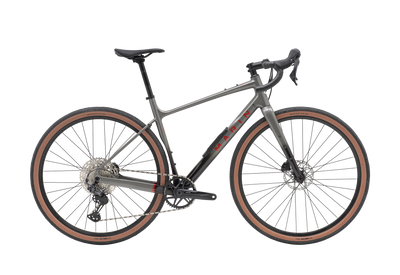

Gray bicycle with brown tires on a white background

Shimano GRX Drivetrain

Gravel-specific shifting designed for mixed terrain adventures!Shimano GRX Drivetrain

Full Carbon Fiber Construction

with Bear Box In-Frame Storage
Ultimate lightweight strength with hidden gear storage space!Full Carbon Fiber Construction with Bear Box in-frame Storage

Carbon Fiber Fork

Lightweight stiffness that absorbs trail vibrations perfectly!

Shimano GRX Hydraulic Disc Brakes

Trusted stopping power with legendary Shimano reliability!
