SAN QUENTIN JR 24

£999.00

Designed with the input of freeride legend Matt Jones, the San Quentin takes the DNA of our dirt-jumping Alcatraz and mutates it into a go-further and faster all-round, hardcore hardtail.

The San Quentin 24” will feel just like a ‘grown up’ mountain bike to your little ripper, built with a stout Series 2 aluminum frame, 24” wheels, and for 2025/26, a new Manitou J Unit 100mm air suspension fork meaning more adjustability for lighter shredders.

Further updates include a one piece seatpost and saddle to allow for a lower standover and ride height, 1 x 9-speed Shimano Cues drivetrain, tubeless compatible tyres kid’s specific hydraulic disc brakes.

Size

one

Color: Blue Fade

Specifications Geometry Technology Services

SAN QUENTIN JR 24

£999.00

Size

one

Color: Blue Fade

Details Specifications

Frame

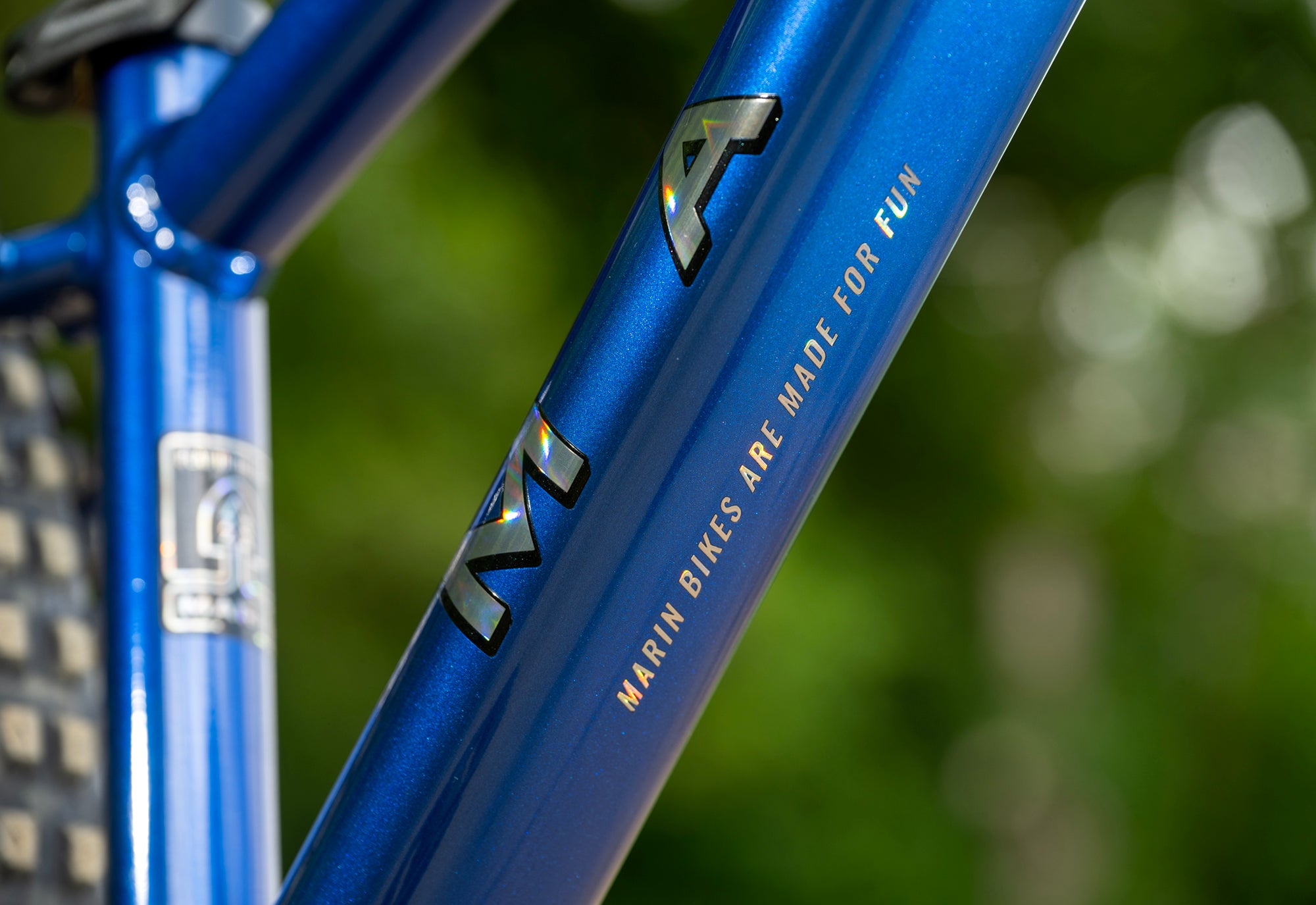

Series 2 6061 Aluminum, 24” Wheels, Disc Specific, 30.9 Post and Dropper Compatible

Front Suspension

Manitou Junit Sport, 24", 100mm Travel, Air Sprung, Adjustable Rebound, Tapered Steerer, 15x110mm Axle

Rim

Marin, Double Wall Alloy, 26mm Internal, Tubeless Compatible

Hub Rear

Forged Aluminum, 32H, Disc Specific

Hub Front

Forged Aluminum, 32H, Disc Specific

Spokes

14g Stainless Steel

Tires

Delium Versatile, 24”x2.4”, Light Construction, Wire Bead, Tubeless Compatible

Shift Lever

Shimano CUES, SL-U4000, 9-speed

Crankset

Forged Alloy, Narrow Wide 30T, 140mm

Bottom Bracket

Sealed Cartridge Bearings, Square Taper

Chain

KMC X-Glide

Cassette

Shimano CUES, CS-LG3000, 9-Speed, 11-46T

Brakes Front

Shimano MT200, Hydraulic, 160mm Rotor

Brakes Rear

Shimano MT200, Hydraulic, 160mm Rotor

Brake Levers

Shimano Hydraulic

Handlebar

Marin Riser, 31.8mm Clamp, 30mm Rise, 580mm Width, 19mm OD Grip Section

Stem

Marin Alloy, 40mm

Grips

Marin MTB, Small Diameter

Headset

FSA No. 57E

Seatpost

Integrated With Saddle

Saddle

Marin One-Piece Saddle/Post Combo, 27.2mm Alloy Post

Pedals

Kids Specific Nylon Pedal

Details Geometry

Geometry	One
A Stack	510
B Reach	345
C Headtube angle	65°
D Headtube length	90
E Seattube length	290
F Seattube angle	75°
G Toptube effective	481
H Bb height	292
I Bb drop	30
J Chainstay	380
K Wheelbase	1009
L Standover height	574
M Fork offset	42
N Seatpost diameter	30.9
O Handlebar width	580
P Stem length	35
Q Crank length	140

Featured 2025.1 SAN QUENTIN JR 24

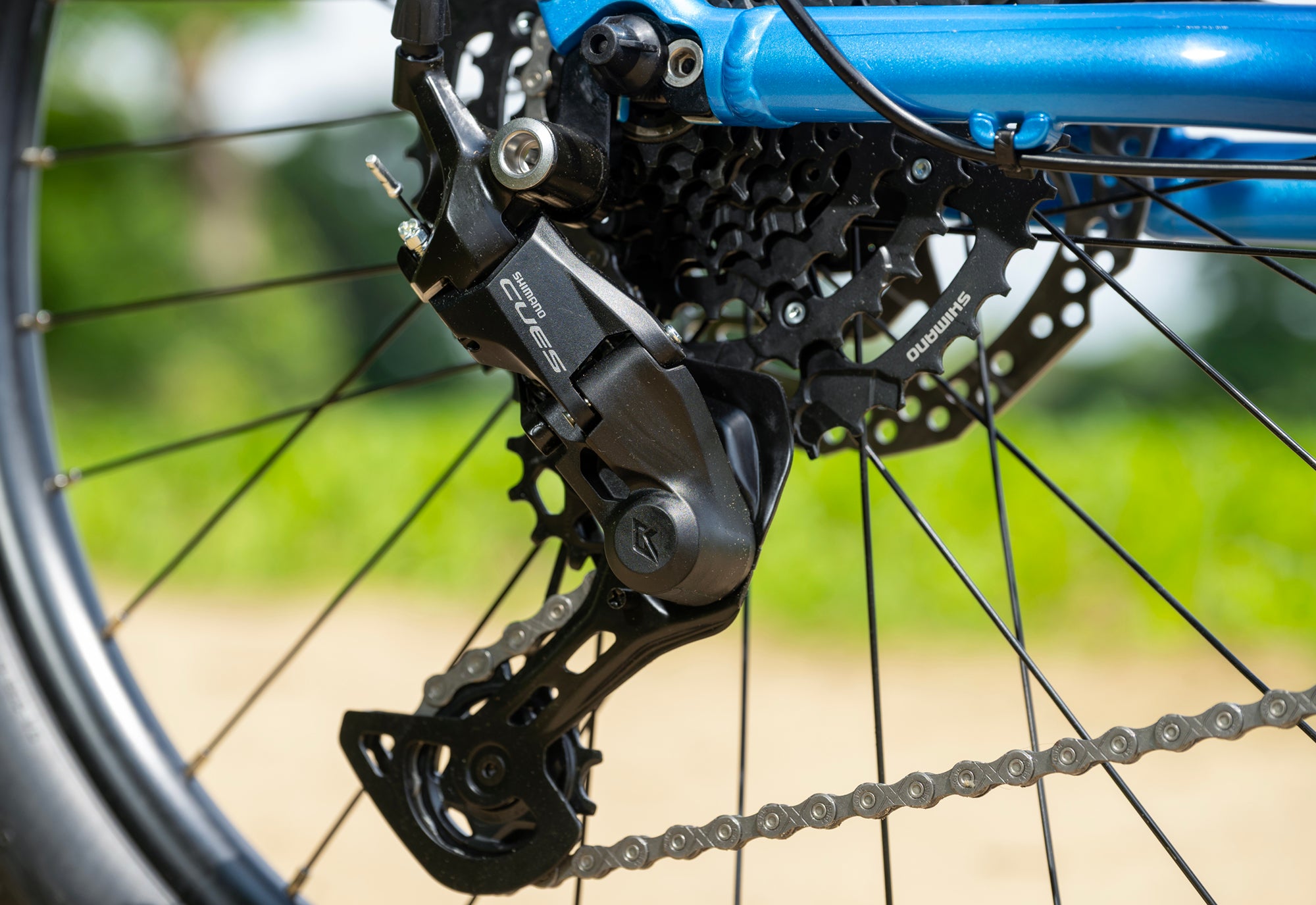

Shimano 1 x 9 Cues Drivetrain

One Piece Seatpost and Saddle

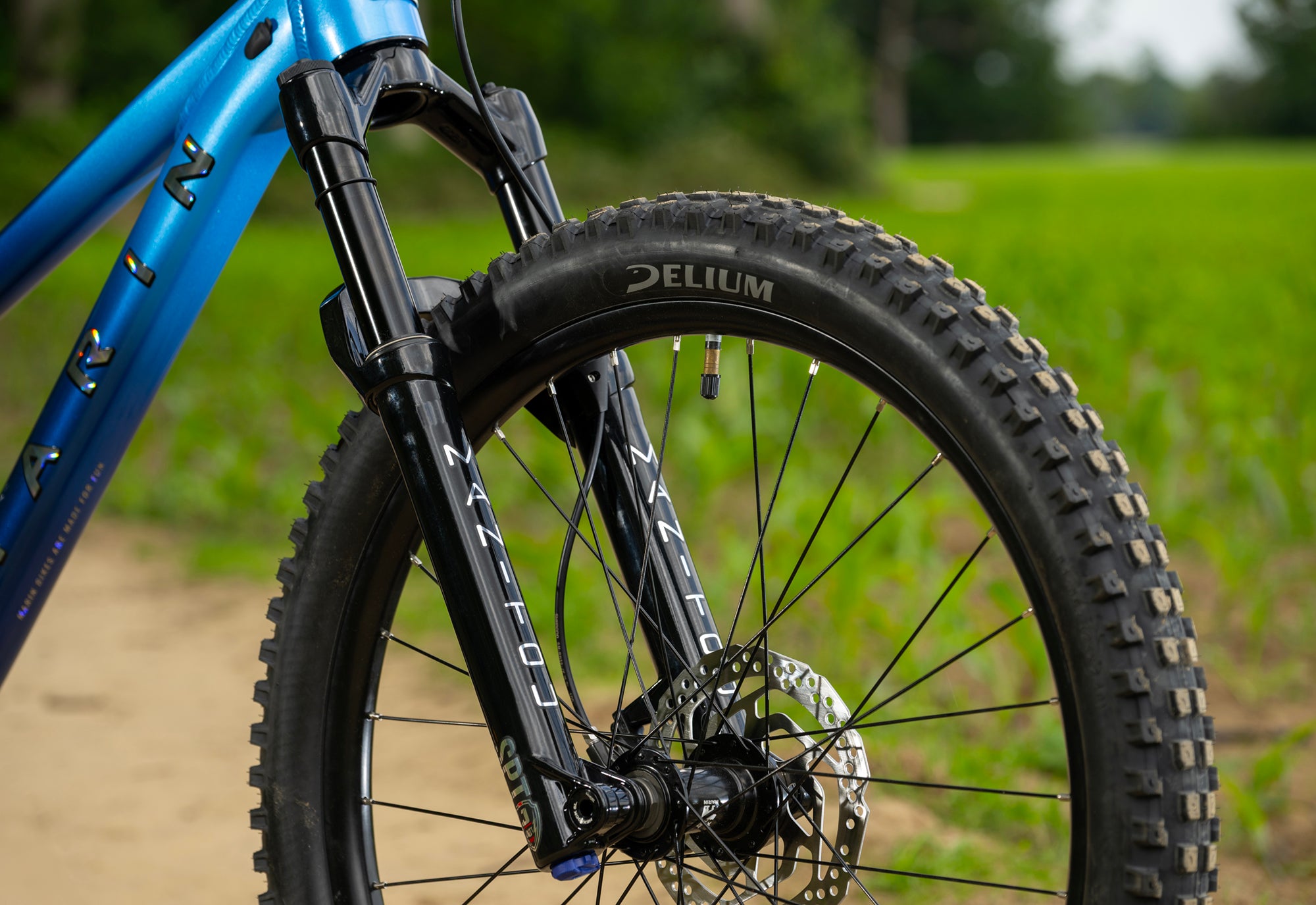

Manitou J Unit 100mm Air Fork

Find Your Fit

Your Height 5'3" / 160cm

slide the scale to your height measurement

You ride a

One / Blue Fade

SAN QUENTIN JR 24
