2025 Gestalt X10

Gestalt X

£1,369.00

The Gestalt X10 uses a wide range MicroShift 10 speed set up for simplicity and efficiency and powerful, dual piston, mechanical disc brakes to pull up when needed.

Built from our premium, butted and formed Series 3 aluminum construction with braze-in internal cable routing, impressive tyre clearance and genuinely beyond-road geometry, making the Gestalt X models our most off road capable drop bar bikes we've ever made.

Size

Details Specifications

Fork

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Frame

Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Rim

Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific

Hub Rear

Forged Aluminum Alloy, Disc, 32H

Hub Front

Forged Aluminum Alloy, Disc, 32H

Spokes

14g Black Stainless Steel

Tires

Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible

Shift Lever

microSHIFT Advent X 10-Speed

Crankset

Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T

Bottom Bracket

External Sealed Cartridge Bearings

Chain

KMC X10

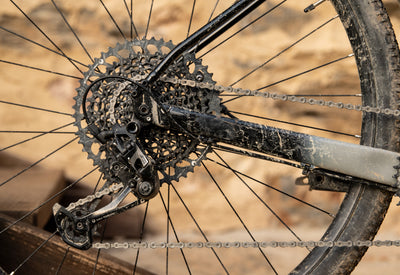

Cassette

SunRace 10-Speed, 11-51T

Brakes Front

Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

Brakes Rear

Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

Brake Levers

microSHIFT Advent X

Handlebar

Marin Butted Alloy, Compact 16º Flared Drop

Stem

Marin 3D Forged Alloy

Grips

Marin Shock Absorbing Perforated Tape

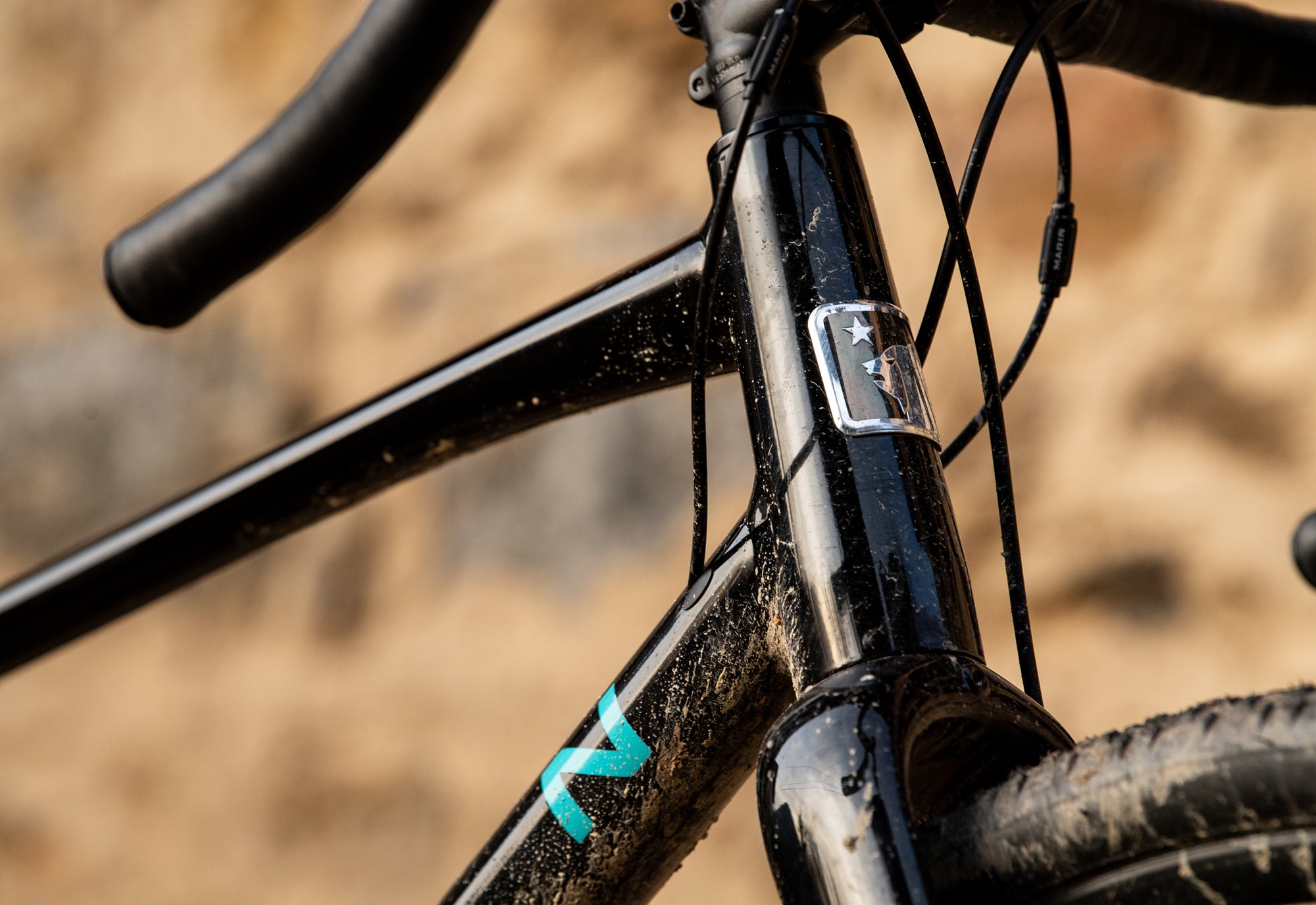

Headset

FSA No 42ACB, 1 1/8" x 1 1/2”

Seatpost

Marin Alloy, 27.2mm

Saddle

Marin Beyond Road Concept

Details Geometry

Geometry	S	M	L	XL
A Stack	547.6	566	589.1	621.5
B Reach	400	420	440	460
C Headtube angle	67.5°	67.5°	67.5°	67.5°
D Headtube length	130	150	175	210
E Seattube length	460	485	505	530
F Seattube angle	75°	74°	74°	74°
G Toptube effective	546.7	582.3	608.9	638.2
H Bb height	282.5	282.5	282.5	282.5
I Bb drop	80	80	80	80
J Chainstay	425	425	425	425
K Wheelbase	1065.2	1092.8	1122.4	1155.6
L Standover height	678.6	687.7	708.6	734.5
M Fork offset	50	50	50	50
N Seatpost diameter	27.2	27.2	27.2	27.2
O Handlebar width	440	460	480	480
P Stem length	50	50	50	50
Q Crank length	170	170	175	175
