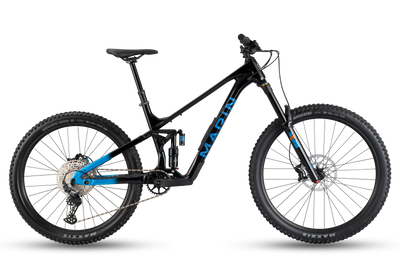

Black mountain bike with blue accents on a transparent background
2026 Alpine Trail 1

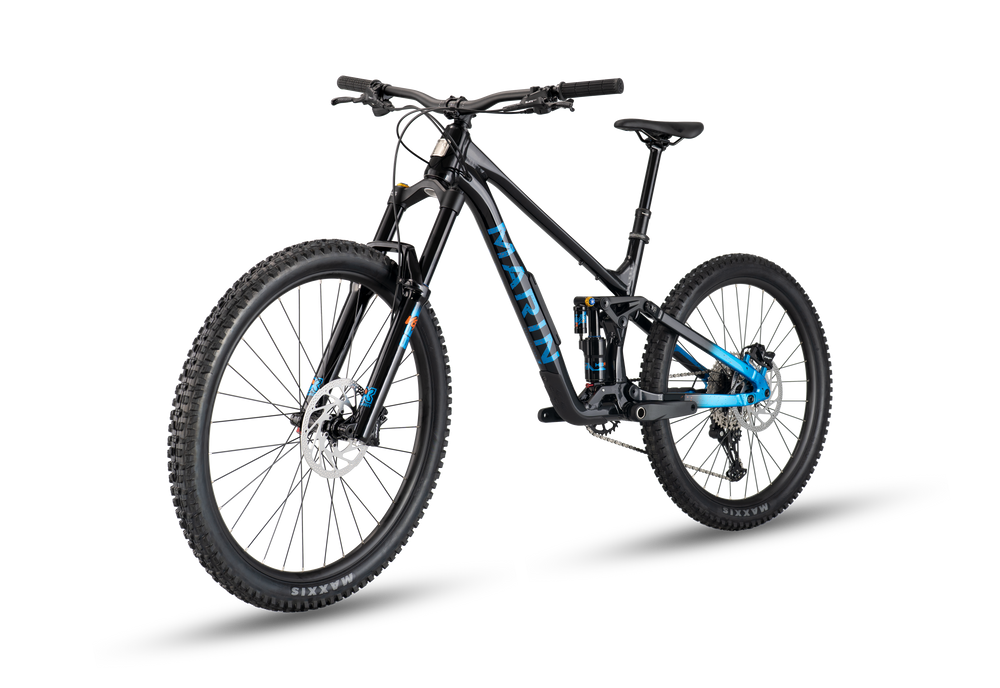

Black mountain bike with blue accents on a white background

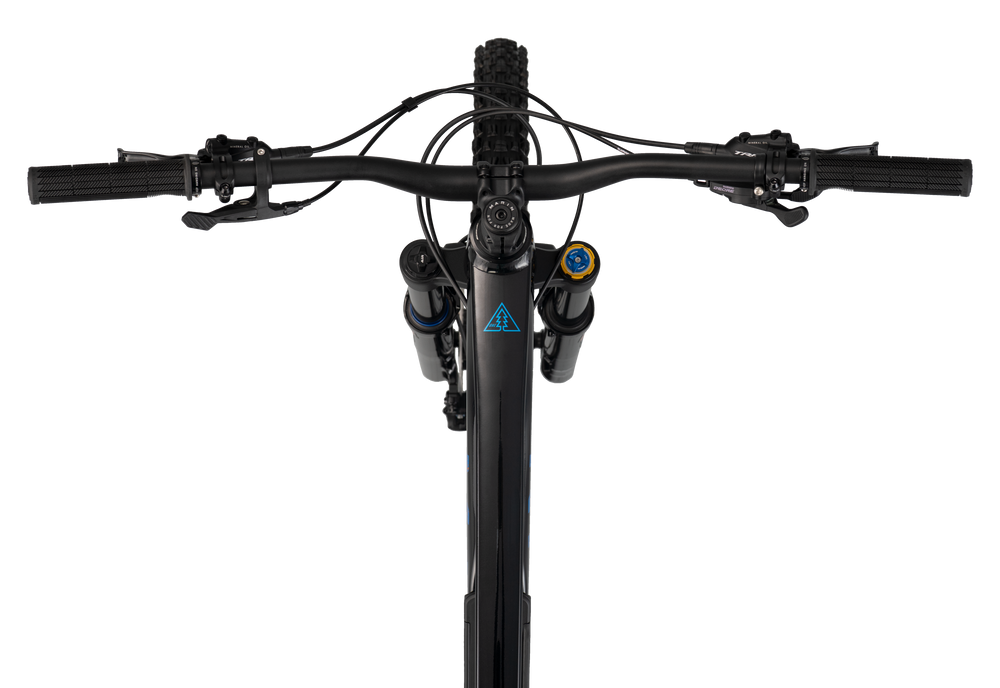

Close-up of a bicycle handlebar with visible brand logo on a white background

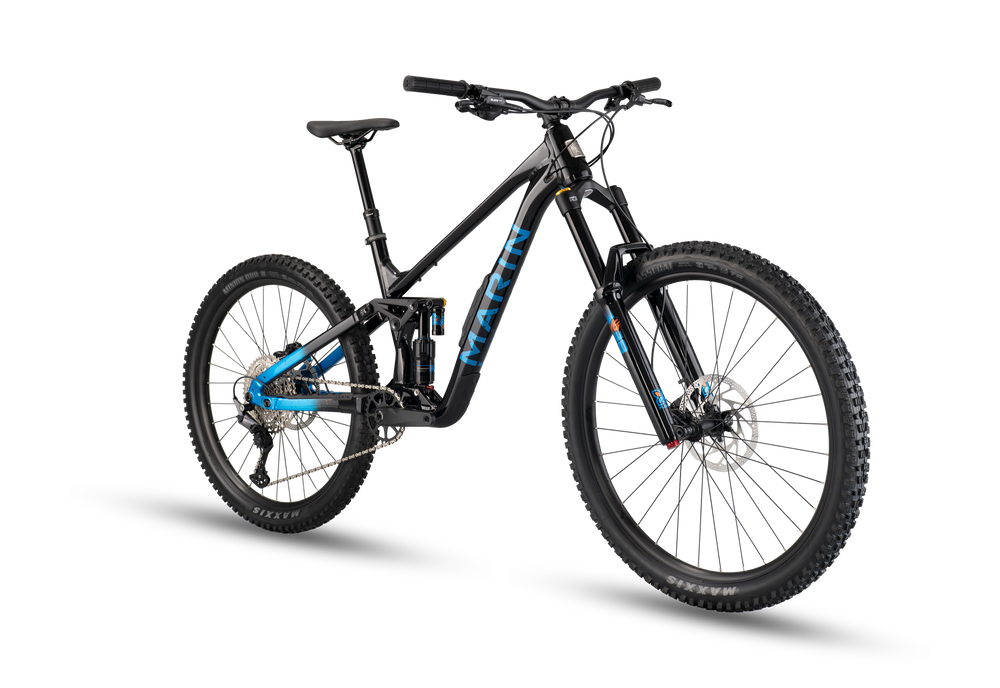

Black mountain bike with blue accents on a white background

Alpine Trail 1

2.786,55 zł

2.786,55 zł

2.786,55 zł

2.786,55 zł

Trustpilot

Nowe aluminiowe ramy Marin Alpine Trail Series 4 MultiTrac 2 LT posiadają mieszane koła 29"/27,5", skok 170 mm z przodu i 160 mm z tyłu oraz najwyższą regulację. Rowerzyści mogą zmieniać kąt główki ramy i długość suportu / podpory łańcucha, a także w razie potrzeby zamontować 29-calowe tylne koła. Schowek na rurze dolnej "Bear Box" zawiera zapinaną na zamek nylonową torbę na niezbędne rzeczy na szlaku, a sztyca podsiodłowa 34,9 mm zwiększa wytrzymałość i jest kompatybilna z najnowszymi sztycami opuszczanymi.

Chociaż Alpine Trail 1 jest punktem wyjścia w linii trzech modeli, nie poszliśmy na żadne ustępstwa w zakresie specyfikacji. Wysokowydajne zawieszenie Fox zapewnia kontrolę przez cały czas, a 12-biegowy napęd Shimano Deore przenosi moc na koło. 4-tłoczkowe hamulce TRP Slate Evo wyposażone są w tarcze o średnicy 203 mm, które utrzymują prędkość w ryzach w mocny i nieblaknący sposób.

Kolor
brązowy niebieski
Size
s
Customize my ride

Dokumenty techniczne

Rozwiń Dokumenty techniczne Zwiń Dokumenty techniczne
Zobacz dokumenty techniczne tutaj (otwiera się w nowej karcie)

Geek Out

Rozwiń Geek Out Zwiń Geek Out

The Alpine Trail 1 doesn't cut corners, it charges them. X-Fusion's Vengeance fork pumps out 170mm of travel up front, perfectly matched to the H3A rear shock's custom tune – together they're fettled for our 160mm travel MultiTrac LT suspension platform.
It's a pairing that hits way above its weight class.

The Horst-link design balances progression, support and suppleness. Whether you're railing berms, hunting for traction or just sending it to flat, the design's neutral predictability has your back.

Shimano's Deore 12-speed drivetrain shifts cleanly under pressure and handles the wildest rides. TRP's Slate Evo 4-piston brakes with 203mm rotors are the perfect power and modulation combo. The TranzX adjustable travel dropper lets you dial in your perfect fit.

It has the same Series 4 Aluminum frame as the range-topping XR – maximum enduro, zero compromises. It's built to go hard with optimized tube shapes, a redesigned rocker link and carefully engineered chainstays make it epically capable. Weather-sealed internal cable routing, SRAM's UDH, Boost axle spacing and ride-hushing chain slap protection are the premium touches your rides deserve. Integrated Bear Box downtube storage keeps trail essentials close without overloading your bag.

Mixed wheels – 29in up front, 27.5in out back – beautifully combine stability and agility, or run full 29in for the ultimate charger. Lock in your personal set-up with tunable geometry. Swap out the upper headset cup for ±0.75 degrees of adjustment – go slack for fast descents or steepen it up for tight tech. Chainstay flip chips adjust bottom bracket height and chainstay length. Your sweet spot is just a few adjustments away – The Alpine Trail 1 is ready to ride your way

Specyfikacje Geometria Technologia Usługi
Black mountain bike with blue accents on a transparent background
2026 Alpine Trail 1

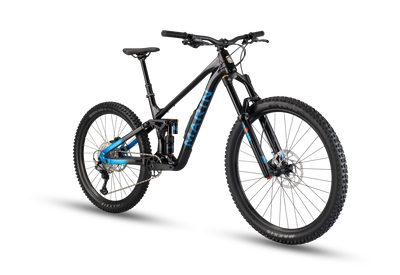

Black mountain bike with blue accents on a white background
Close-up of a bicycle handlebar with visible brand logo on a white background
Black mountain bike with blue accents on a white background

Specifications

SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

Fork

Fox 36 Rhythm, 170mm Travel, 29", Grip Damper, 110x10 Kabolt, 44mm Offset

Frame

Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Front Suspension

X-Funsion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle

Rear Suspension

X-Fusion H3A Air, 205x65, 30xM8 Lower Hardware, Custom Tune

Rim

New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

Hub Rear

Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body

Hub Front

Shimano HF-MT500B, 110x15mm, Centerlock

Spokes

14g Black Stainless Steel

Tires

Front: Maxxis Assegai MAXX GRIP, 29x2.5" EXO+ Rear: Maxxis Minion DHR II, MAXXTERRA, 27.5x2.5" DoubleDown, Tubeless compatible

Derailleur Rear

Shimano Deore, 12-Speed, SGS

Shift Lever

Shimano Deore, 12-Speed, SL-6100-IR

Crankset

Samox RAC61C, Forged Alloy, 32T, 55mm CL, 165mm

Bottom Bracket

Samox BSA Threaded

Chain

KMC X-12 Silver and Black

Cassette

Shimano, Deore M6100 12-Speed, 10-51T

Brakes Front

TRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor

Brakes Rear

TRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor

Brake Levers

TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem

Marin 3D Forged Alloy, 35mm

Grips

Marin Grizzly Lock-On

Headset

FSA Custom Headset, Adjustable HTA Design

Seatpost

TranzX YS160QL Adjustable Travel Dropper Post, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm

Saddle

Marin Speed Concept

Extras

Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Geometry

View All Geometry Configurations
Geometry S M L XL
A Stack 634
B Reach 460
C Headtube angle 63.5°
D Headtube length 115
E Seattube length 420
F Seattube angle 79°
G Toptube effective 592
H Bb height 352
I Bb drop 24 | 7
J Chainstay 435
K Wheelbase 1248
L Standover height 690
M Fork offset 44
N Seatpost diameter 34.9
O Handlebar width 780
P Stem length 35
Q Crank length 160

2026 Alpine Trail 1

Black mountain bike with blue accents on a transparent background

Shimano Deore 12 Speed Drivetrain

Trans X Dropper Post

Series 4 Aluminum MultiTrac 2 LT Adjustable Frame

Fox Performance 170mm Fork

Marin Alpine Trail chainstay flip chip detail.

Adjustable Geometry

With the integrated flip chips, adjustable headset and an aftermarket 29” rear wheel, Alpine Trail aluminum riders can select 12 unique configurations to run their bikes. These configurations allow the best fine-tuning of chassis to trail conditions available. Flip chips are easy to reconfigure trailside and easily done using a 6mm hex wrench, require no additional parts, and incorporate laser-etched graphics that indicate the position of the chips. The stock 27.5” rear wheel can be swapped out for a 29” rear wheel (not included) if desired, along with changing the position of the seatstay flip chips. Furthermore, the flip chips located at the seatstay pivots alter the bottom bracket height and chainstay length (low BB/long CS setting = 345/442mm, high BB/short CS setting = 352/435mm) so that riders can perfectly dial their bike in to match the terrain they are looking to conquer.
