Specifications

SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

Frame

Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Rear Suspension

RockShox Vivid Air Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune

Headset

FSA Custom Headset, Adjustable HTA Design

Extras

Marin MTB Seat Clamp - Bolt Type, Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Downtube Storage Bag

Geometry

Geometry S M L XL
A Stack 620 634 643 64.7
B Reach 430 460 490 520
C Headtube angle 63.5° 63.5° 63.5° 63.5°
D Headtube length 100 115 125 130
E Seattube length 400 420 430 450
F Seattube angle 79° 79° 79° 79°
G Toptube effective 556 592 626 659
H Bb height 352 352 352 352
I Bb drop 24 | 7 24 | 7 24 | 7 24 | 7
J Chainstay 442 442 442 442
K Wheelbase 1211 1248 1283 1318
L Standover height 683 690 695 698
M Fork offset 44 44 44 44
N Seatpost diameter 34.9 34.9 34.9 34.9
O Handlebar width 780 780 780 780
P Stem length 35 35 35 35
Q Crank length 160 160 160 160
Marin Alpine Trail chainstay flip chip detail.

Adjustable Geometry

With the integrated flip chips, adjustable headset and an aftermarket 29” rear wheel, Alpine Trail aluminum riders can select 12 unique configurations to run their bikes. These configurations allow the best fine-tuning of chassis to trail conditions available. Flip chips are easy to reconfigure trailside and easily done using a 6mm hex wrench, require no additional parts, and incorporate laser-etched graphics that indicate the position of the chips. The stock 27.5” rear wheel can be swapped out for a 29” rear wheel (not included) if desired, along with changing the position of the seatstay flip chips. Furthermore, the flip chips located at the seatstay pivots alter the bottom bracket height and chainstay length (low BB/long CS setting = 345/442mm, high BB/short CS setting = 352/435mm) so that riders can perfectly dial their bike in to match the terrain they are looking to conquer.

Dopasuj do siebie rozmiar roweru

Twój wzrost 5'3" / 160cm

Przesuń wskaźnik do poziomu swojego wzrostu

Twój rozmiar to

SREBRNY CZARNY

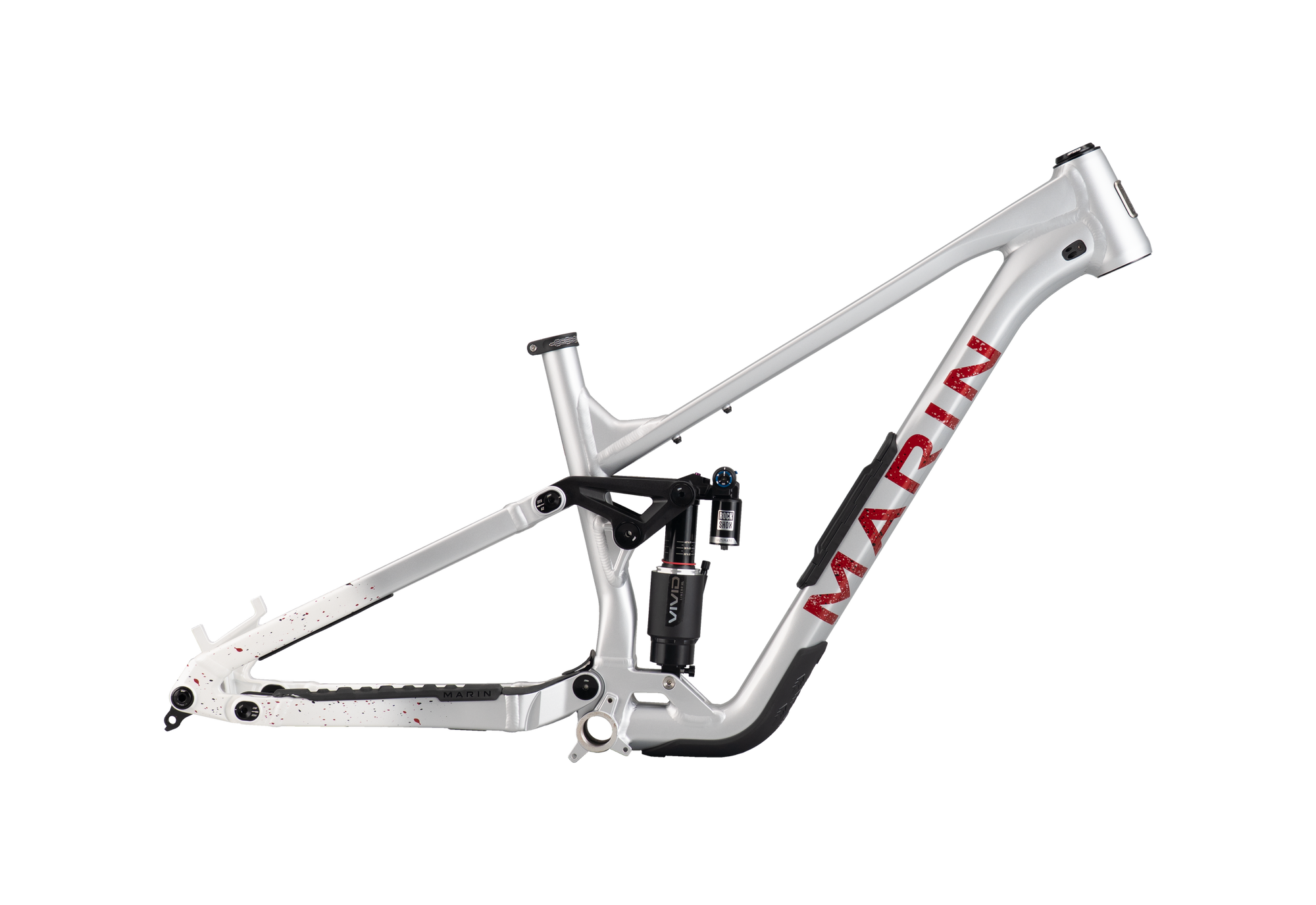

Bicycle frame in silver with red Marin graphics

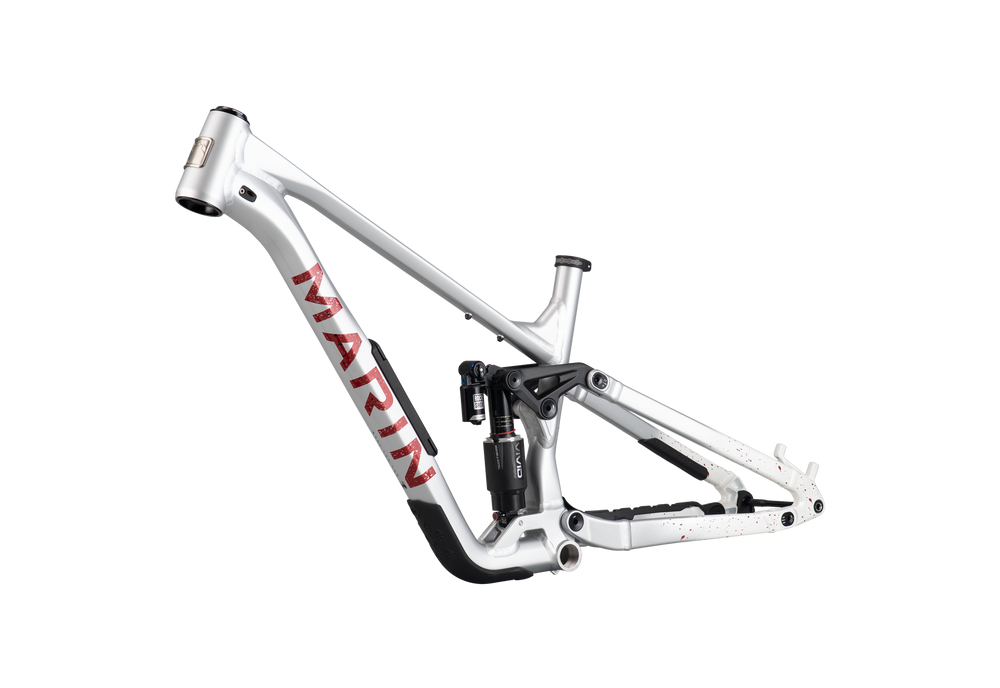

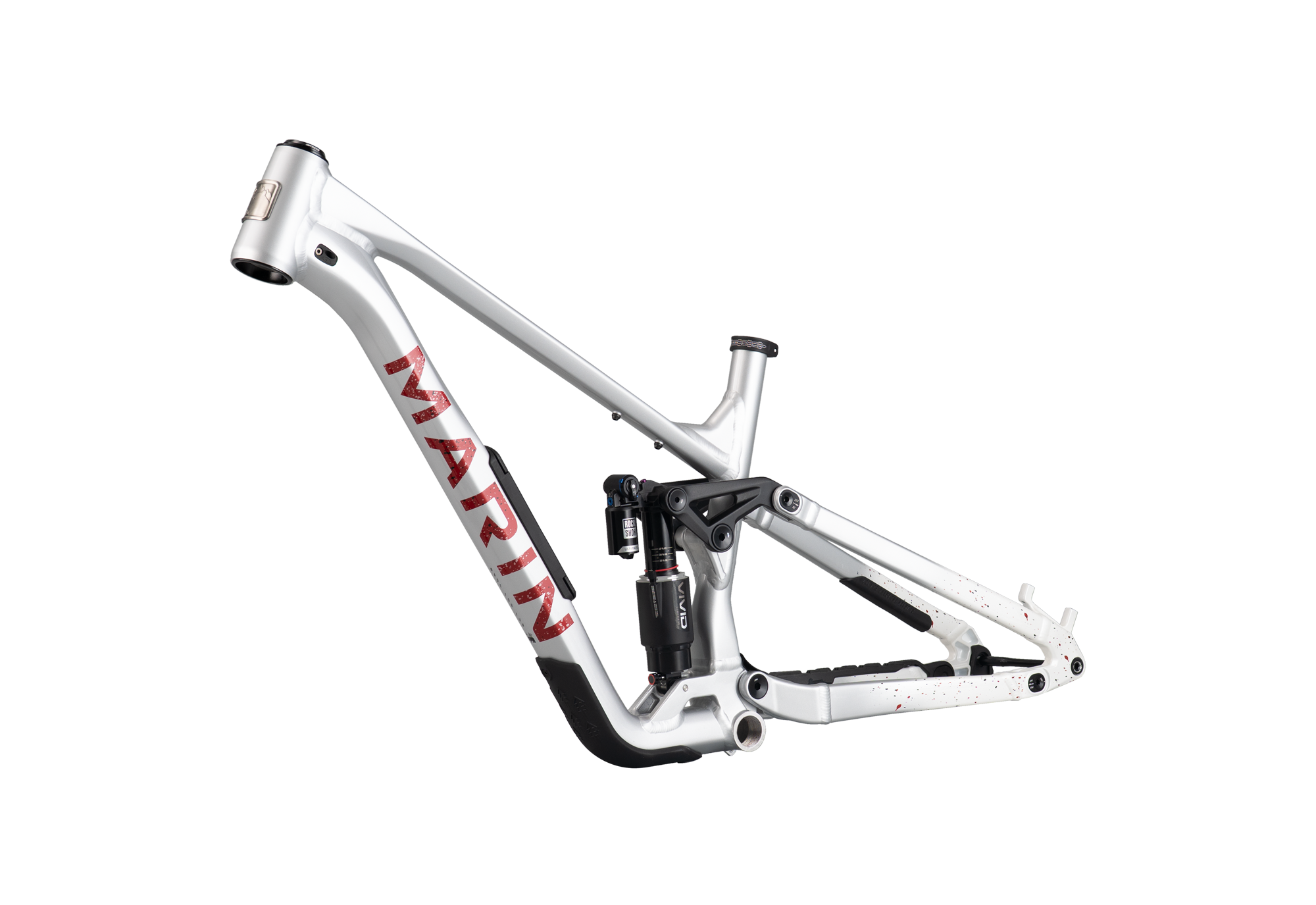

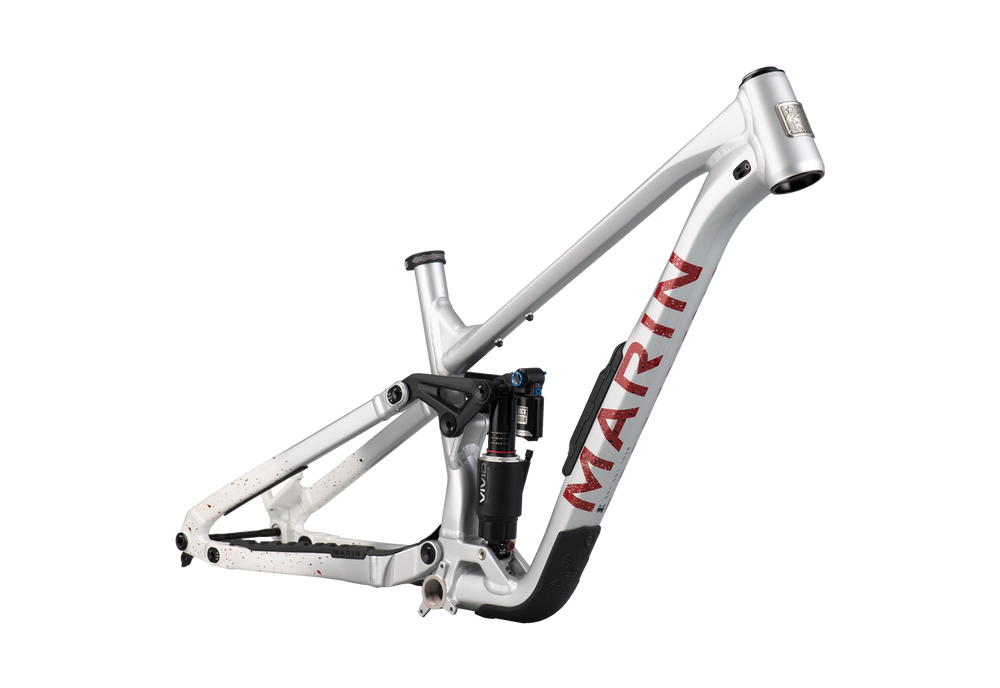

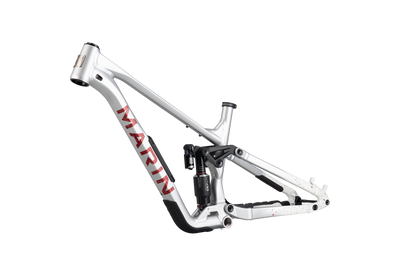

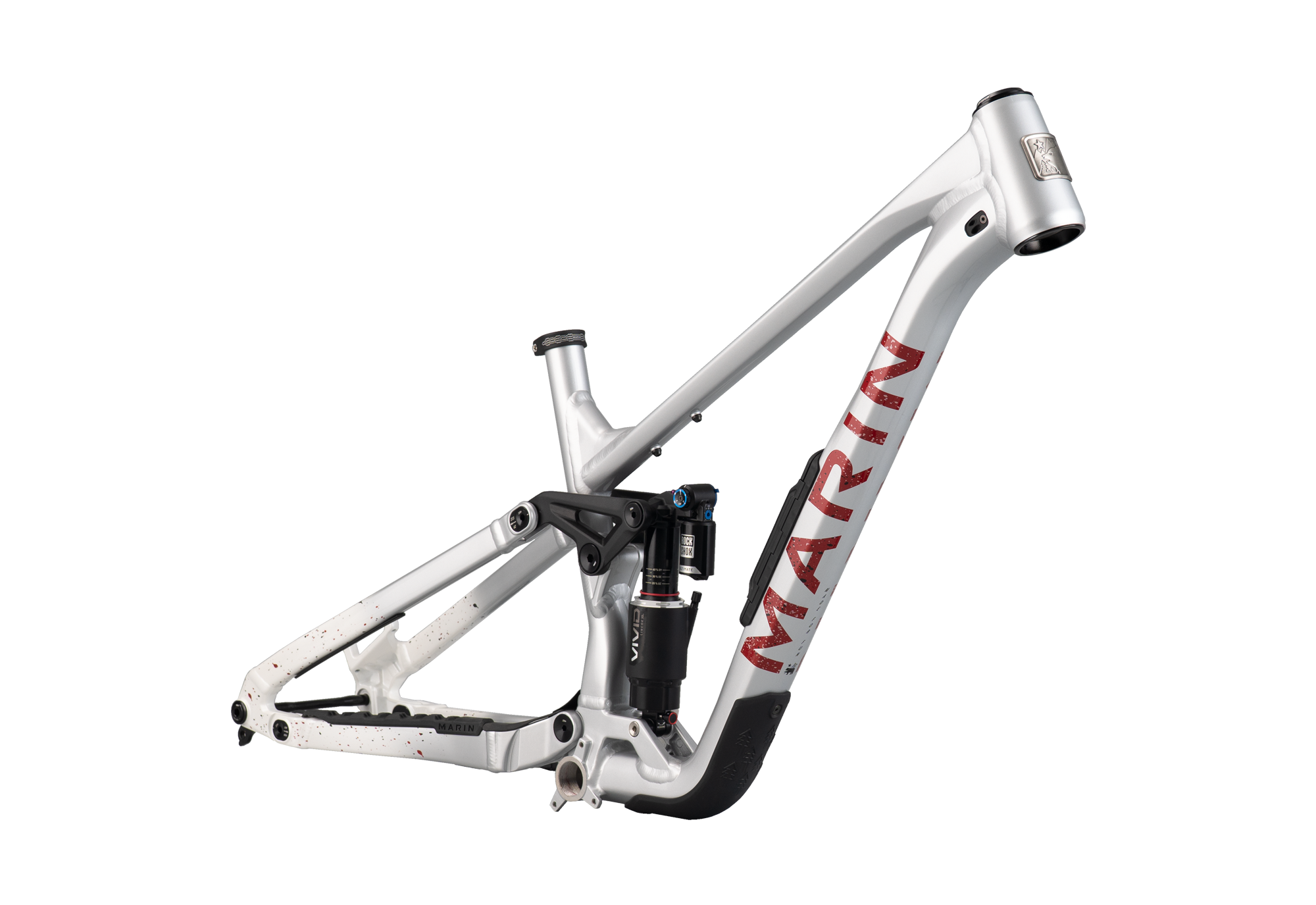

Alpine Trail XR Frame Kit

Unsure about your size? Check with your local Marin dealer for personalized advice.
