Rift Zone 29 Carbon XR

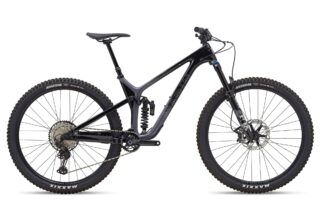

Marin Rift Zone Carbon XR profile.

See this bike in a different color:
  • Suspension: Fox Performance Elite Float 36 / Fox Factory Series Coil
  • Wheel Size: 29"
  • Frame: Carbon Fiber
  • Size Range: S, M, L, XL

FAST PACED, EPIC RIDES

PUSHING THE ENVELOPE UP AND DOWN THE TRAIL

The Rift Zone XR is the newest and rowdiest member of the Rift Zone Carbon lineup, designed around a 140mm travel fork, paired with the included Fox Factory Coil rear shock.

Key upgrades from Rift Zone Carbon 29 2:

  • Fox Performance Elite 36 Float/Float Factory Series Coil suspension
  • 140mm travel fork
  • Shimano XT 4-piston brakes

Jump to…

Specifications

  • Frame

    Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

  • Front Suspension

    Fox Performance Elite Float 36, 140mm Travel, GRIP 2 Damper, 110x15mm Kabolt Axle, 44mm Offset

  • Rear Suspension

    Fox Factory Series Coil, Coil Spring, Climb Switch, Rebound & Compression Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom. Spring rates: S = 350lb, M = 400lb, L = 450lb, XL = 500 lb

  • Rims

    Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible

  • Hub, Rear

    Shimano, Microspline 148x12mm, Disc, 32H

  • Hub, Front

    Shimano, 110x15mm, Disc, 32H

  • Spoke, Nipples

    14g Black Stainless Steel

  • Tires

    Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible

  • Derailleur, Rear

    Shimano XT, 12-Speed, SGS

  • Derailleur, Front

    -

  • Shift Lever

    Shimano SLX 12-Speed, I-Spec EV

  • Crankset

    FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing

  • Bottom Bracket

    MEGAEVO BB, 73mm BSA Threaded

  • Chain

    KMC X-12 Silver and Black

  • Cassette

    Shimano SLX M7100, 12-Speed, 10-51T

  • Brake, Front

    Shimano XT, 4-Piston Hydraulic Disc, Brake 203mm Rotor

  • Brake, Rear

    Shimano XT, 4-Piston Hydraulic Disc Brake, 180mm Rotor

  • Brake Levers

    Shimano XT Hydraulic, I-Spec EV

  • Handlebar

    Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back

  • Stem

    Marin CNC Stem, 35mm Length, 35mm Bar Bore

  • Grips

    All New Marin Single Clamp Locking

  • Headset

    FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • Seatpost

    X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

  • Saddle

    Marin Trail Speed Concept Pro

  • Pedals

    -

  • Extras

    Bolt-On Thru-Axle

Specifications, pricing, and availability are subject to change without notice.

Geometry

Rift Zone 29 Carbon XR geometry diagram
S M L XL
Stack 605.64 610.32 614.92 619.6
Reach 425.72 450.74 475.84 510.97
Headtube Angle 65.1° 65.1° 65.1° 65.1°
Headtube Length 100 105 110 115
Seattube Angle 76° 76° 76° 76°
Seattube Length 390 400 425 430
Toptube Effective 576.72 602.91 629.16 665.44
BB Height 347 347 347 347
BB Drop 31 31 31 31
Chainstay 425 425 425 425
Wheelbase 1164.899 1191.97 1219.12 1259.11
Standover Height 648 655 664 667
Fork Offset 44 44 44 44
Seatpost Diameter 30.9 30.9 30.9 30.9
Handlebar Width 780 780 780 780
Stem Length 35 35 35 35
Crank Length 170 170 170 170

All lengths in millimeters

Suspension Setup

REAR SHOCK SETUP

Recommended Sag = 30%/15mm

Step 1: Set correct pressure in rear shock.

Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).

Step 3: Reset O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.

Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.

Step 5: Adjust rebound setting to ensure proper control.

FORK SETUP

Marin recommends that all bikes front and rear suspension feel balanced

Step 1: After rear sag is set follow the recommended pressure from the fork manufacture.

Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.

Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.

Rider weight and shock setup
LBS KG COIL LB/IN
120 54 300
130 59 300
140 64 300
150 68 350
160 73 350
170 77 350
180 82 400
190 86 400
200 91 400
210 95 450
220 100 450
230 104 450
240 109 500
250 113 500
260 118 500
270 122 500
