Rift Zone 29" 2

2023 Rift Zone 29 2 Color

See this bike in a different color:
  • Suspension: Marzocchi Bomber Z2 29" / RockShox Deluxe Select RT
  • Wheel Size: 29"
  • Frame: Aluminum
  • Size Range: S, M, L, XL

Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.

The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.

The Marin Rift Zone 29 2 is the Rifty everyone wants to ride, with a hand-picked selection of our favorite components. We've chosen a buttery-smooth Marzocchi and RockShox suspension duo, a TransX dropper post, grippy Vee Flow Snap tires, plenty of super-reliable Shimano components and a whole load of our favorite Marin fine details to complete the package.

Key upgrades from Rift Zone 29 1:

  • Marzocchi Bomber Z2 fork
  • RockShox Deluxe Select RT Debonair rear shock
  • Shimano Deore 12-speed drivetrain
  • TranzX dropper post
  • Vee Tire Flow Snap 2.35" tires

Jump to…

Specifications

  • Frame

    All New Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

  • Front Suspension

    Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset

  • Rear Suspension

    RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x55mm, M8x25mm Hardware

  • Rims

    Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

  • Hub, Rear

    Forged Aluminum, 148x12mm, Centerlock Disc, 32H

  • Hub, Front

    Forged Alloy, 110x15mm, Disc, 32H

  • Spoke, Nipples

    14g Black Stainless Steel

  • Tires

    Vee Tire Co. Flow Snap 29x2.35", Tackee Compound, Tubeless Ready

  • Derailleur, Rear

    Shimano Deore, 12-Speed, SGS

  • Derailleur, Front

    -

  • Shift Lever

    Shimano Deore, 12-Speed, SL-M6100-R

  • Crankset

    FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

  • Bottom Bracket

    External Sealed Cartridge Bearing

  • Chain

    KMC X-12 Silver and Black

  • Cassette

    SunRace 12-speed, 11-51

  • Brake, Front

    Shimano MT-200 Hydraulic Disc, 180mm Rotor

  • Brake, Rear

    Shimano MT-200 Hydraulic Disc, 180mm Rotor

  • Brake Levers

    Tektro HDM-535

  • Handlebar

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • Stem

    Marin 3D Forged Alloy, 35mm

  • Grips

    Marin Grizzly Lock On

  • Headset

    FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • Seatpost

    TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm

  • Saddle

    Marin Speed Concept

  • Pedals

    -

  • Extras

    Bolt-On Thru-Axle

Specifications, pricing, and availability are subject to change without notice.

Geometry

Rift Zone 29" 2 geometry diagram
S M L XL
Stack 623.6 628.2 637.3 641.8
Reach 435 460 485 515
Headtube Angle 65.5° 65.5° 65.5° 65.5°
Headtube Length 110 115 125 130
Seattube Angle 77° 77° 77° 77°
Seattube Length 390 400 425 430
Toptube Effective 579 605 632.1 663.2
BB Height 343 343 343 343
BB Drop 35 35 35 35
Chainstay 430 430 430 430
Wheelbase 1170 1205.1 1234.4 1266.3
Standover Height 690.2 691.2 701.7 700.5
Fork Offset 44 44 44 44
Seatpost Diameter 30.9 30.9 30.9 30.9
Handlebar Width 780 780 780 780
Stem Length 35 35 35 35
Crank Length 170 170 170 170

All lengths in millimeters

Suspension Setup

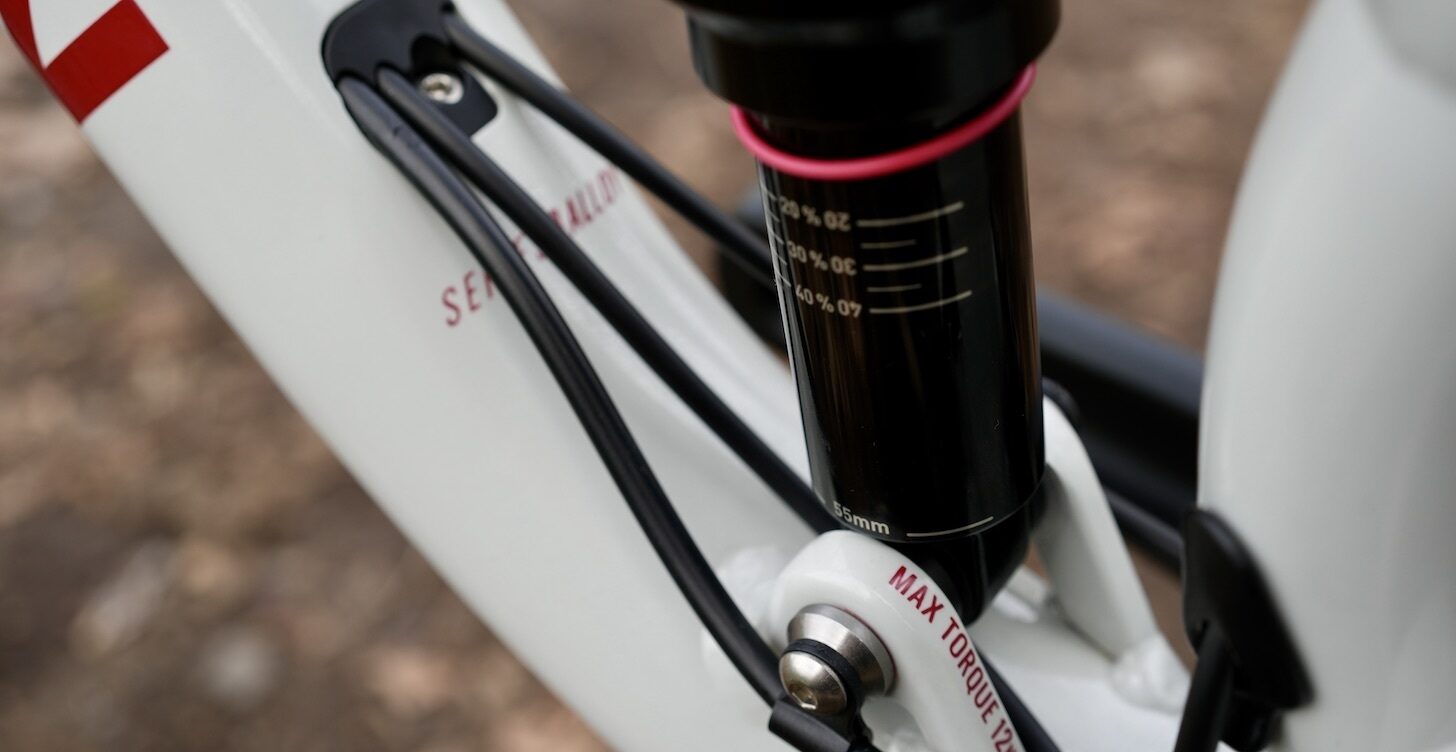

REAR SHOCK SETUP

Recommended Sag = 30%/15mm

Step 1: Set correct pressure in rear shock.

Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).

Step 3: Reset O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.

Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.

Step 5: Adjust rebound setting to ensure proper control.

FORK SETUP

Marin recommends that all bikes front and rear suspension feel balanced

Step 1: After rear sag is set follow the recommended pressure from the fork manufacturer.

Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.

Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.

RockShox Deluxe Select RT

Rider weight and shock setup
LBS KG PSI
120 54 103
130 59 118
140 64 133
150 68 150
160 73 167.5
170 77 185
180 82 195
190 86 205
200 91 213
210 95 221
220 100 229
230 104 234
240 109 239
250 113 244
260 118 249
270 122 254

Reviews

You don't need a top-of-the-line bike to have a ton of fun

The Marin feels spritely; the short chainstays and low bottom bracket height make for nimble and agile handling on tight turns and technical terrain.
