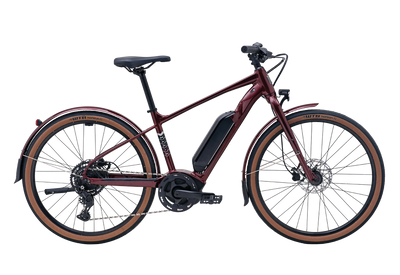

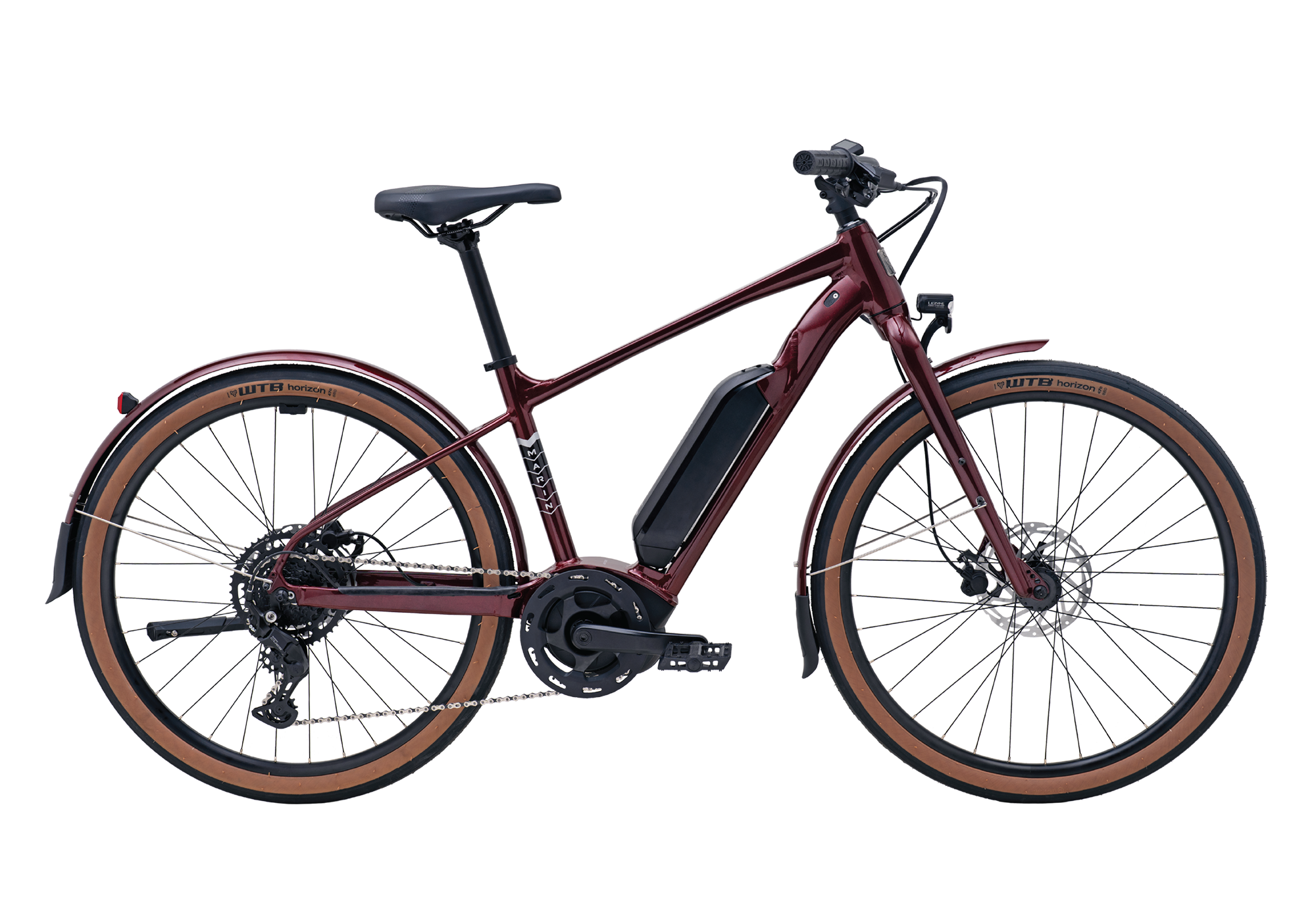

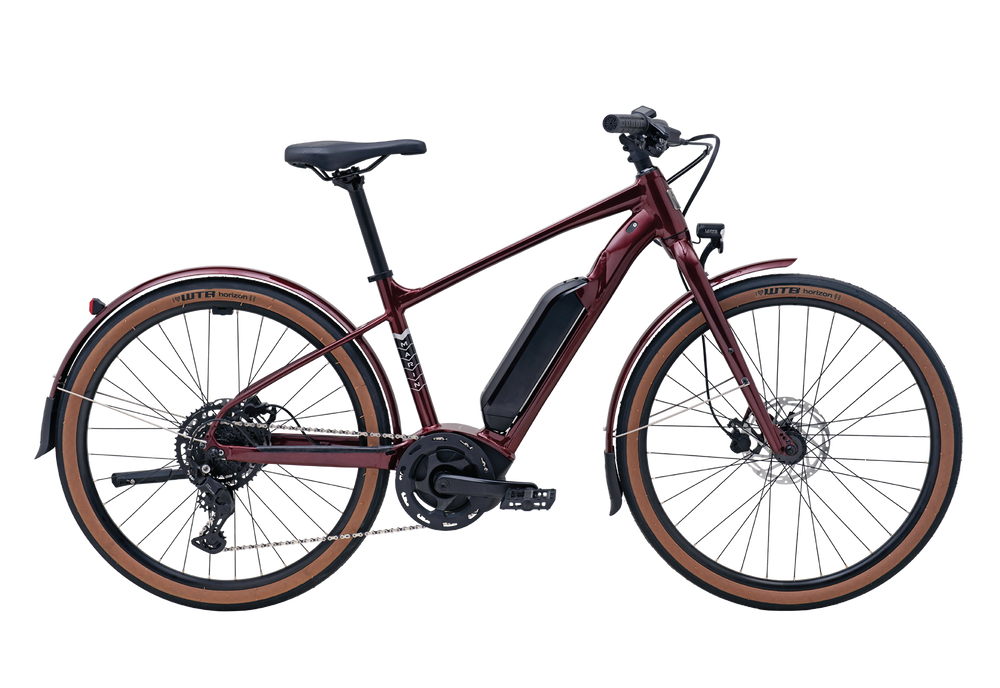

Sausalito E1

$3,499.00

We've updated the Sausalito E1 for 2025 to include fender and lights as standard as well as some minor geometry tweaks for comfort and efficiency. We've made the E1 available in both traditional and step-through frame options to ensure that whatever your preference, you're comfortable exploring on a Sausalito.

The E1 now utilizes the new Bosch Active + ecosystem with a larger 545wh battery for increased range and exploration.

We’ve paired it up with wide-range gearing and powerful hydraulic disc brakes that’ll tame all conditions and all-weather.

Specifications Geometry Technology Services

Sausalito E1

$3,499.00

Details Specifications

Range

25-93 miles/40-150km

Battery

Bosch Power Pack 545, 545Wh

Motor

Bosch Active Plus, 250W, 50Nm, Class 1 (North America - 20mph/32Kph, EU - 25Kph)

Fork

Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets

Frame

Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts

Rim

Marin Aluminum Double Wall, Disc Specific

Hub Rear

Forged Alloy, Disc Specific, 32H

Hub Front

Forged Alloy, Disc Specific, 32H

Spokes

14g Black Stainless Steel

Tires

WTB Horizon, 650Bx47, Wire Bead

Shift Lever

Shimano CUES 9-Speed

Crankset

Forged Aluminum w/ 38T Steel Chairing

Chain

KMC E11S

Cassette

Shimano CUES 9-Speed 11-46T

Brakes Front

Tektro HD-M275 Hydraulic, 180mm Rotor

Brakes Rear

Tektro HD-M275 Hydraulic, 180mm Rotor

Brake Levers

Tektro Hydraulic

Handlebar

Marin Urban Alloy, 31.8mm Clamp

Stem

Marin Alloy

Grips

Marin County

Headset

FSA No. 57E

Seatpost

Marin Alloy, 30.9mm

Saddle

Marin City Plush

Pedals

Flat

Extras

Rear Mount Alloy Kickstand

Details Geometry

Geometry	S	M	L	XL
A Stack	607.4	625.8	653.4	681
B Reach	405	425	445	465
C Headtube angle	67°	67°	67°	67°
D Headtube length	130	150	180	210
E Seattube length	430	480	520	558
F Seattube angle	73.5°	73.5°	73.5°	73.5°
G Toptube effective	549	582	610.2	633.2
H Bb height	293	293	293	293
I Bb drop	65	65	65	65
J Chainstay	465	465	465	465
K Wheelbase	1138	1166	1198	1230
L Standover height	698	735.1	769.2	797.5
M Fork offset	44	44	44	44
N Seatpost diameter	30.9	30.9	30.9	30.9
O Handlebar width	700	700	700	700
P Stem length	45	45	45	45
Q Crank length	170	170	170	170

Featured 2025.1 Sausalito E1 (Bosch Active+ INT)

Shimano 1 x 9 Speed Transmission

Bosch Active+ Motor & Battery

Find Your Fit

Your Height 5'3" / 160cm

slide the scale to your height measurement

You ride a

MAROON (INT) / S

Sausalito E1
