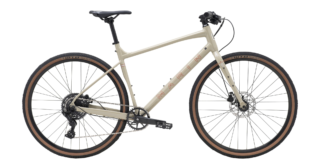

2022 DSX Color

See this bike in a different color:

  • Price: $979.00*
  • Wheel Size: 700C
  • Frame: Aluminum
  • Size Range: S, M, L, XL
  • Manufacturer’s suggested retail price may not include additional shipping or preparation charges. Please contact your local Marin dealer for a quote.

LONG DISTANCE MIXED SURFACE COMMUTING

GRAVEL RIDING

ADVENTURE ON AND OFF-ROAD RIDING

The most affordable member of the family, the Marin DSX feels high-end, but doesn’t blow your adventure budget. It has a Series 2 aluminum frame and fork, microSHIFT 9-speed drivetrain, Clark’s hydraulic brakes, WTB Riddler tires and plenty of reliable Marin components to complete the package.

Specifications

  • Frame

    Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount

  • Fork

    6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets

  • Rims

    Marin Aluminum Double Wall, Disc Specific

  • Hub, Rear

    Forged Aluminum Alloy, Disc, 32H

  • Hub, Front

    Forged Aluminum Alloy, Disc, 32H

  • Spoke, Nipples Nipples

    14g Black Stainless Steel

  • Tires

    WTB Riddler, 700Cx45mm

  • Derailleur, Rear

    microSHIFT Advent 9, Clutch

  • Derailleur, Front

    -

  • Shift Lever

    microSHIFT Advent 9 Trail

  • Crankset

    Alloy Crank, Steel Narrow-Wide Chainring, 38T

  • Bottom Bracket

    Sealed Cartridge Bearings, Square Taper

  • Chain

    KMC X9

  • Cassette

    SunRace 9-Speed, 11-46T

  • Brake, Front

    Tektro HDM275 Hydraulic Disc, 160mm Rotor

  • Brake, Rear

    Tektro HDM275 Hydraulic Disc, 160mm Rotor

  • Brake Levers

    Tektro Hydraulic

  • Handlebar

    Marin Mini Riser

  • Stem

    Marin 3D Forged Alloy

  • Grips

    Marin MTB

  • Headset

    FSA, Orbit CE No.8B

  • Seatpost

    Marin Alloy

  • Saddle

    Marin DSX

  • Pedals

    Nylon Platform

Specifications, pricing, and availability are subject to change without notice.

Geometry

DSX geometry diagram
S M L XL
Stack 544.4 572.5 600.6 628.7
Reach 380 405 420 435
Headtube Angle 69.5° 69.5° 69.5° 69.5°
Headtube Length 120 150 180 210
Seattube Angle 74° 74° 74° 74°
Seattube Length 430 480 520 558
Toptube Effective 536.1 569.2 592.2 615.3
BB Height 279.5 279.5 279.5 279.5
BB Drop 80 80 80 80
Chainstay 425 425 425 425
Wheelbase 1024.42 1060 1085.4 1110.9
Standover Height 658.76 700.51 730.39 758.5
Fork Offset 50 50 50 50
Seatpost Diameter 27.2 27.2 27.2 27.2
Handlebar Width 640 680 680 680
Stem Length 70 70 70 70
Crank Length 170 175 175 175

All lengths in millimeters

Technology

SERIES 3 & SERIES 2 FRAMES

The DSX FS, 2, and 1 feature a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.

The DSX (base) model utilizes a Series 2 6061 aluminum frame with internal cable routing, and rack and fender eyelets.

Learn More
Marin DSX 2 rear tire clearance detail

TIRE CLEARANCE

The DSX comes stock with 700x45mm tires, with room for 29x2.1” knobbies.

Marin DSX 2 rear dropout and flat mount brake mount

DISC BRAKES

The DSX features the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.

Marin DSX 2 seattube and downtube cable ports

DROPPER POST ROUTING

Dropper posts are quickly becoming standard fare for gravel racers and riders that spend significant time on rough surfaces, and the DSX features internal dropper post routing for easy upgrades.
