Pavement — Frame Materials

Back to technology

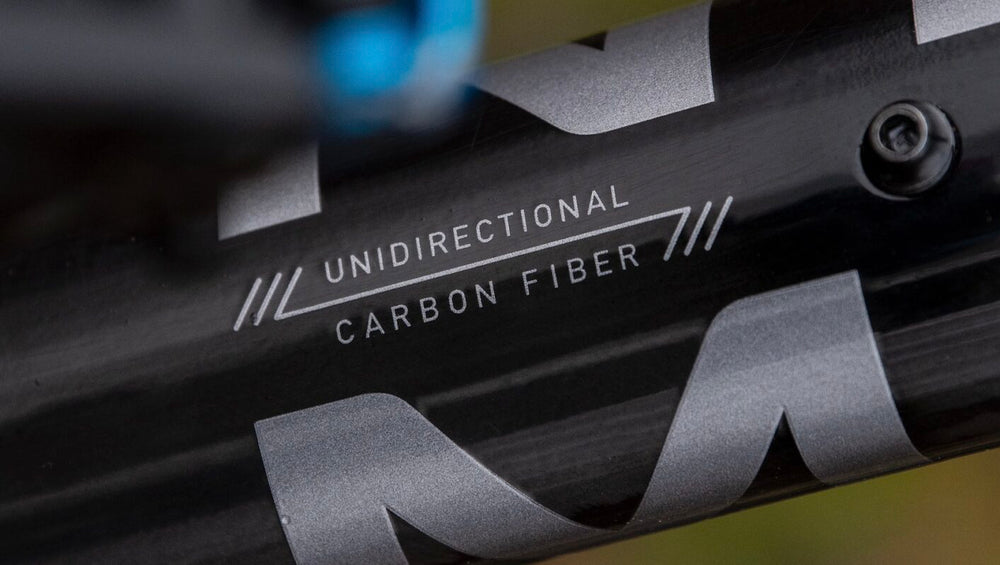

A close-up image of a Marin Bikes bicycle with the words 'unidirectional carbon fiber' painted on the frame

UNIDIRECTIONAL CARBON FIBER

Headlands 2 • Headlands 1

Features

  • Unidirectional carbon fiber
  • CAD optimized layup
  • Internal cable and hose routing
  • BSA threaded bottom bracket shell
  • Tapered headtube
  • Abundant frame eyelets for bottles and gear
Browse
Marin DSX 2 chainstay, showing Series 3 aluminum decal.

Series 3 Aluminum

Gestalt X11 • Gestalt X10 • Gestalt 2.5 • Gestalt 2 • Gestalt 1 • Fairfax 3 • Presidio 3 • DSX 2 • DSX 1

Features

  • Highly formed and butted custom tubesets
  • Machined and relieved headtubes and BB shell
  • Internal cable routing
  • 3D forged seatstay bridge
  • Flat mount disc with forged 142x12mm dropouts
  • Tapered headtubes
Browse

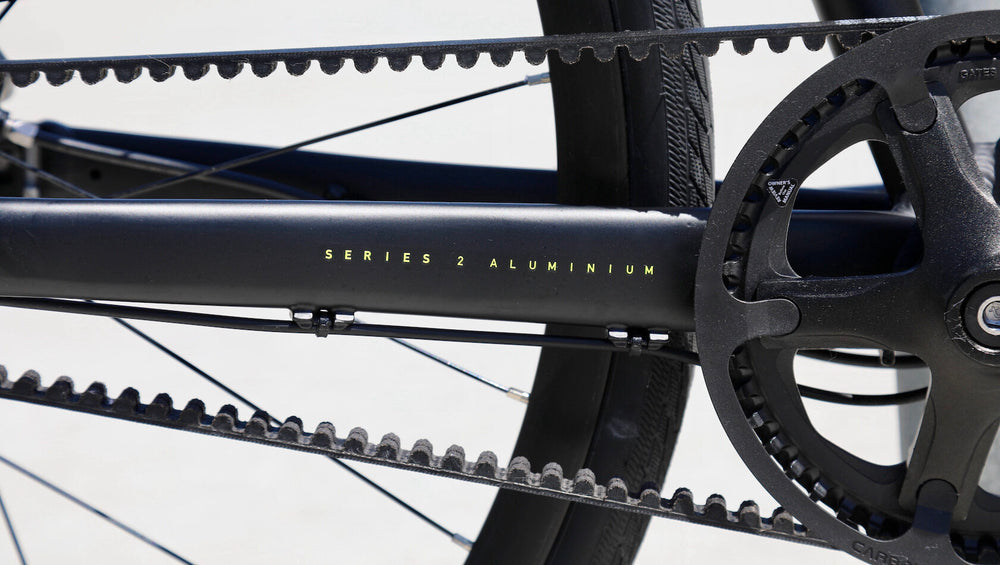

A close-up image of a Marin Bikes bicycle with the words 'Series 2 Aluuminum' painted on the frame

Series 2 Aluminum

Gestalt • Fairfax 2 • Presidio 2 • San Rafael DS2 • San Rafael DS1 • San Anselmo DS2 • San Anselmo DS1

Features

  • Butted and formed tubeset
  • Relieved headtube and BB shell
  • Internal cable routing
  • Disc-specific forged dropouts
  • 1 1/8” internal bearing headtubes
Browse

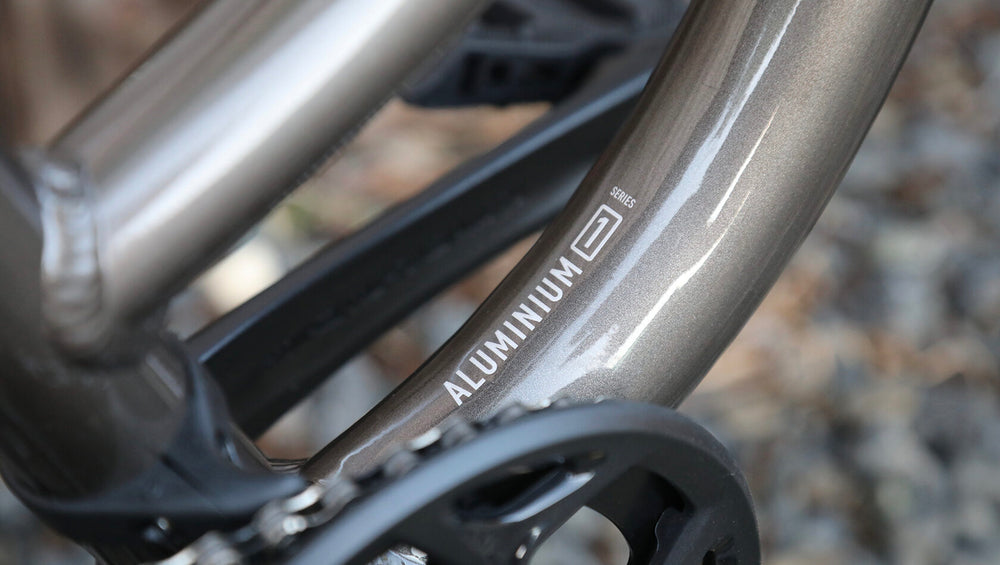

A close-up image of a Marin Bikes bicycle with the words 'Series 1 Aluuminum' painted on the frame

Series 1 Aluminum

Fairfax 1 • Presidio 1 • Kentfield 2 • Kentfield 2 ST • Kentfield 1 • Kentfield 1 ST • Stinson 2 • Stinson 2 ST • Stinson 1 • Stinson 1 ST

Features

  • Mechanically formed and manipulated tubesets
  • IS mount disc
  • 1 1/8” internal bearing headtubes
Browse

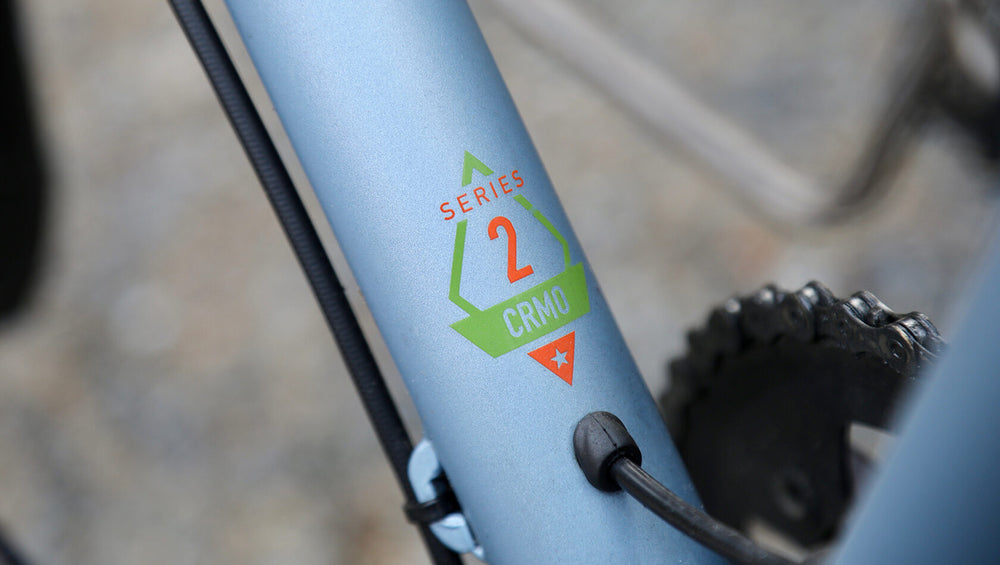

A close-up image of a Marin Bikes bicycle with the words 'Series 2 CRMO' painted on the frame

Series 2 CRMO (Drop Bar)

Fairfax 1 • Presidio 1 • Kentfield 2 • Kentfield 2 ST • Kentfield 1 • Kentfield 1 ST • Stinson 2 • Stinson 2 ST • Stinson 1 • Stinson 1 ST

Features

  • Double butted tubing
  • 142x12mm thru-axle dropouts
  • Flat mount dropouts with fender and rack mounts
  • Tapered headtubes
Browse
A close-up image of a Marin Bikes bicycle with the words 'Series 2 CRMO' painted on the frame

Series 2 CRMO (City/Urban)

Muirwoods RC • Larkspur 2 • Larkspur 1

Features

  • Double butted tubing
  • Cast and forged aluminum slider dropouts
  • Belt drive compatibility
  • 1 1/8” internal bearing headtubes
Browse
A close-up image of a Marin Bikes bicycle with the words 'Series 2 CRMO' painted on the frame

Series 1 CRMO

Nicasio+ • Four Corners • Muirwoods

Features

  • Double butted tubing
  • Kickstand mount
  • 135x9mm open dropouts
  • 1 1/8” internal bearing headtubes
Browse
